Product Details

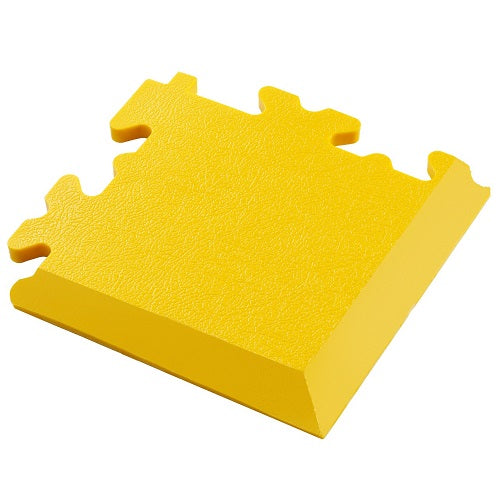

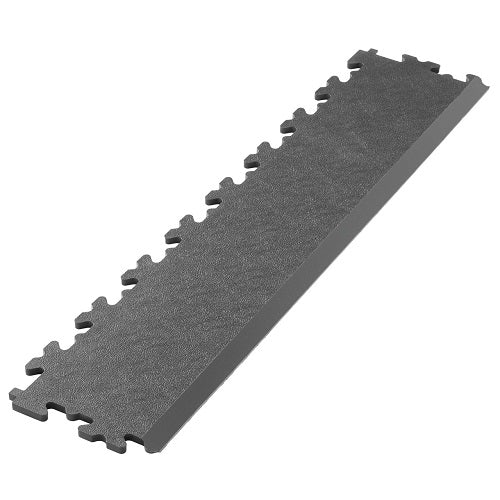

ESD221 Anti-Static Tile Ramp & Corner Trim — Essential Edge Finishing for ESD Flooring Systems

Designed to complement the Rubberco ESD221 anti-static interlocking tile system, these 7mm ramp and corner trim pieces provide the professional edge finishing required for safe, compliant ESD floor installations. The bevelled ramp profile eliminates trip hazards at the tile perimeter, while the corner piece seals exposed edges against dust and debris ingress.

Key Technical Specifications

Property	Value
Thickness	7mm (matches ESD221 tile height)
Material	PVC with conductive carbon layer
Surface Resistance	10⁵ – 10⁹ Ω (ESD safe range)
Slip Resistance	R10 anti-slip surface
Usage	Indoor use — electronics labs, server rooms, cleanrooms, manufacturing
Sold As	Per piece (ramp or corner)

Why Use ESD Ramp Trim?

Exposed tile edges create both safety and compliance issues. The ramp profile gradually transitions from floor height to tile surface level, preventing trips at doorways and aisle boundaries. Without edge trim, anti-static flooring systems may fail inspection under BS EN 61340-5-1 — the standard governing ESD protected areas (EPAs).

Applications

Electronics assembly and PCB manufacturing areas
Server rooms and data centres
Cleanrooms and pharmaceutical manufacturing
Telecommunications equipment bays
Aerospace and defence manufacturing
Laboratory workstations

Compatible With

Designed for use with the Rubberco ESD221 7mm Anti-Static Interlocking PVC Tile system. Matches tile dimensions for a flush, professional finish.

Browse the full ESD flooring range

Frequently Asked Questions

What is anti-static ESD flooring used for?

Anti-static ESD flooring is used in electronics manufacturing, server rooms and laboratories where electrostatic discharge could damage sensitive equipment.

What ESD standards does the flooring meet?

Our ESD flooring meets IEC 61340-4-1 standards, with surface resistivity in the range of 10⁶ to 10⁹ ohms.

Does anti-static flooring need to be earthed?

Yes — for full ESD protection, anti-static flooring should be connected to an earth point via conductive adhesive or grounding strip.

Is ESD flooring suitable for clean rooms?

Yes — available in clean-room compatible grades meeting ISO 14644 cleanliness requirements.

Can anti-static flooring be cleaned with standard floor cleaners?

Use ESD-safe cleaning products. Standard chemicals may leave residues that affect performance.
