Last updated: April 2026

22mm Stable Mats UK: Maximum Comfort for Your Horses

22mm stable mats represent the premium tier of equestrian rubber flooring in the UK — chosen by competition yards, breeding establishments, veterinary facilities, and welfare-focused horse owners who want the very best underfoot conditions for their animals. At 22mm, these heavy-duty rubber mats deliver superior cushioning, exceptional thermal insulation, and the longest service life of any standard stable mat thickness on the market.

This comprehensive guide covers everything UK buyers need to know about 22mm stable mats — from the technical advantages over thinner options, to installation, cost, and sourcing from reputable UK suppliers.

Why Choose 22mm Over Standard 17mm Stable Mats?

Enhanced Cushioning and Limb Protection

The additional 5mm of rubber compound in a 22mm mat translates to measurably greater energy absorption. For horses that spend 20+ hours per day stabled — as is common in competition yards during the winter season — the cumulative benefit to joint health is significant. Veterinary physiotherapists working with performance horses increasingly recommend 22mm matting as a baseline welfare standard.

Superior Thermal Insulation

Cold floors are a genuine welfare concern for stabled horses, particularly in the UK's wet winters. 22mm rubber provides approximately 30% greater thermal resistance than 17mm mats, making a meaningful difference to body temperature regulation through the hooves and lower limbs. This is particularly relevant for older horses, those with Cushing's disease, or horses prone to laminitis who may be especially sensitive to cold.

Longer Service Life

More rubber means more material to wear through before replacement is needed. In high-traffic environments — such as yards where horses may paw, scrape, or be particularly active in their boxes — 22mm mats demonstrably outlast thinner alternatives. The additional capital cost is often recovered through extended product lifespan alone.

Technical Specifications of 22mm Stable Mats

Specification	22mm Standard	17mm Comparison
Thickness	22mm (±1mm)	17mm (±1mm)
Typical mat size	1.83m × 1.22m (6ft × 4ft)	1.83m × 1.22m (6ft × 4ft)
Weight per mat	30–38kg	22–28kg
Density	1,100–1,300 kg/m³	1,100–1,300 kg/m³
Shore A Hardness	60–70°	60–70°
Temperature range	-20°C to +70°C	-20°C to +70°C
Expected lifespan	15–25 years	10–20 years

Applications for 22mm Stable Mats in the UK

Competition and Raceyard Stabling

Professional racing and competition stables in the UK — from Newmarket training yards to top-level event horse facilities — routinely specify 22mm matting as standard. The welfare of valuable horses justifies the modest additional expenditure, and many insurance policies for high-value equines recommend or require appropriate stable flooring.

Breeding and Foaling Boxes

22mm mats are the clear choice for foaling boxes and boxes housing pregnant mares. Newborn foals spend significant time lying down on the floor surface, making extra cushioning directly relevant to their welfare. The additional insulation also helps newborns maintain body temperature during the critical first hours after birth.

Veterinary and Rehabilitation Facilities

Equine veterinary clinics, rehabilitation centres, and hydrotherapy units across the UK specify 22mm rubber matting for recovery stalls. Horses post-surgery or recovering from musculoskeletal injuries require maximum cushioning to support healing, making 22mm the only appropriate thickness for clinical equine environments.

Riding School Horses

Riding school horses work hard and may be in their boxes for less time per day than privately owned horses, but they are typically older, may have joint wear, and benefit greatly from extra cushioning. Forward-thinking riding establishments increasingly specify 22mm as a welfare commitment.

Types of 22mm Stable Mats Available

Solid Vulcanised Rubber Mats

The most durable option — solid rubber throughout. These resist urine penetration, are easy to power-wash, and maintain their integrity for decades. The surface is typically embossed with a diamond or stud pattern for grip. Ideal for loose boxes where cleaning efficiency is a priority.

Laminated Crumb Core Mats

Some 22mm mats feature a solid rubber top layer bonded to a crumb rubber core. The crumb layer offers enhanced cushioning and slightly better drainage through the mat body. These are suitable for environments where the extra softness is beneficial, though they require more careful cleaning to prevent moisture retention in the crumb layer.

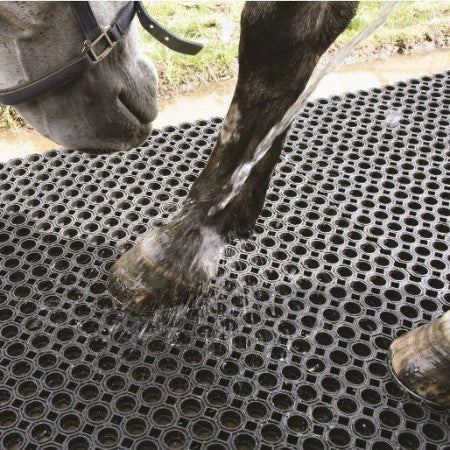

Anti-Slip Drainage Mats

22mm mats with channelled drainage profiles are preferred for horse washer areas, solarium bays, and any wet-area application. The raised surface profile keeps the horse's hoof above standing water, improving grip and hygiene simultaneously.

Installation of 22mm Stable Mats

Substrate Requirements

As with all stable matting, the sub-floor must be level, dry, and structurally sound. Given the heavier weight of 22mm mats (30–38kg each), substrate preparation is even more critical — any voids or soft spots under the mat will concentrate load, potentially causing the concrete to crack over time. Self-levelling compound should be used to address floors with more than 3mm variation over a 2m span.

Calculating Coverage

A standard 6ft × 4ft (1.83m × 1.22m) 22mm mat covers 2.23m². For a 12ft × 12ft (3.66m × 3.66m) loose box:

• Total floor area: approximately 13.4m²
• Mats required: approximately 6–7 full mats (allow for door frame cuts)
• Allow 10% wastage for cuts around fixtures

Handling Considerations

At 30–38kg per mat, 22mm stable mats require two people for safe handling during installation. Use mat trolleys or rubber gloves with grip. Position mats close to their final location before attempting to align, as repositioning heavy mats on concrete requires effort.

Cost of 22mm Stable Mats in the UK

In the current UK market, quality 22mm stable mats are typically priced in the region of £45–£75 per mat (approximately £20–£35 per m²). Key pricing factors include:

• Rubber compound quality and density
• Mat dimensions and format (interlocking vs. loose-lay)
• Quantity ordered (bulk discounts typically apply from 10+ mats)
• Delivery location (free UK mainland delivery available from specialist suppliers)

When comparing prices, always verify the actual rubber density — cheaper mats may be manufactured from lower-density crumb rubber with higher void content, reducing both performance and durability.

Maintenance and Care

Routine Cleaning

Daily removal of droppings and wet bedding is the most important maintenance task. 22mm solid rubber mats are fully compatible with:

• Power washing with cold or warm water
• Approved equine disinfectants (Virkon S, F10SC at recommended dilutions)
• Stable bedding deodorisers and ammonia neutralisers

Periodic Deep Cleaning

Twice yearly, lift all mats and clean both the mat underside and the concrete substrate. Allow both surfaces to dry completely (ideally 24–48 hours) before relaying. This prevents moisture trapping and the associated urine/ammonia smell that builds up at the mat-concrete interface.

Where to Buy 22mm Stable Mats in the UK

Specialist rubber flooring suppliers offer the best combination of product quality, technical advice, and competitive pricing for 22mm stable mats UK orders. Rubberco supplies premium equestrian rubber matting across the UK with free mainland delivery. Our stable mat specialists can help you calculate exact quantities and select the right product for your specific yard requirements.

View our complete stable mat collection to compare 17mm and 22mm options side by side with full technical specifications.

Frequently Asked Questions

Are 22mm stable mats worth the extra cost over 17mm?

For most private horse owners and general livery yards, 17mm is entirely adequate. However, for competition horses, breeding mares, older horses with joint issues, or veterinary facilities, the additional welfare benefit and extended lifespan of 22mm mats genuinely justifies the modest price premium — typically 20–30% more than equivalent 17mm mats.

How heavy are 22mm stable mats?

A standard 6ft × 4ft (1.83m × 1.22m) 22mm rubber mat typically weighs 30–38kg. Two-person handling is recommended for safe installation and repositioning.

Can I mix 17mm and 22mm mats in the same stable?

This is not recommended — the 5mm height difference creates a trip hazard for both horses and yard staff. Choose one thickness for each stable environment and use that consistently throughout the floor area.

Do 22mm stable mats require fixing down?

In most stable applications, no fixing is required. The weight of 22mm mats (30–38kg each) makes them highly stable. Some yards choose to silicone-seal mat joins to prevent urine seeping beneath — this is advisable but optional.

How do I know if my stable mats are genuine 22mm thickness?

Request a material certificate or technical datasheet from your supplier confirming the nominal thickness and tolerance. Physically measure the mat upon delivery with a steel rule or digital caliper before installation. Reputable suppliers will provide documented specifications and stand behind their products.

What is the best surface pattern for 22mm stable mats?

For loose boxes, a diamond emboss or stud pattern provides excellent grip and is easy to clean. For washing areas and horse walkers, a channelled or grooved surface profile aids drainage and may provide better wet-grip performance. Many yards use the same mat throughout for simplicity and consistent coverage calculation.

Ready to find the right product? Shop our Horse & Stable Mats collection → — free UK delivery available on qualifying orders.
