17mm Stable Mats UK: The Complete Buyer's Guide

When it comes to equestrian flooring, 17mm stable mats represent the most popular and widely recommended thickness across UK livery yards, riding schools, and private stables. At this depth, solid rubber matting provides the ideal balance between cushioning underfoot comfort for horses, thermal insulation from cold concrete, and long-term durability. This guide covers everything you need to know before purchasing 17mm stable mats in the UK — from materials and installation to compliance and cost.

What Are 17mm Stable Mats?

Stable mats are thick rubber floor coverings designed specifically for horse accommodation, including loose boxes, American barns, washdown areas, and horse walkers. The 17mm thickness is the industry-standard depth for most loose boxes and general stable applications in the UK.

Why 17mm Is the Industry Standard

The 17mm depth has become the benchmark because it:

• Provides sufficient cushioning to reduce joint stress on horses standing for extended periods
• Offers adequate thermal resistance against cold concrete floors (reducing bedding requirements significantly)
• Weighs enough (typically 20–30kg per mat) to remain stable without fixing to the substrate
• Is manageable by a single person during installation
• Balances cost-effectiveness with performance — thicker mats cost more without proportional benefit in most stable applications

Solid Rubber vs. Crumb-Filled Construction

Most 17mm stable mats are manufactured from vulcanised solid rubber or a combination of solid top layer bonded to a crumb rubber base. Solid rubber mats offer superior durability and are easier to clean, while crumb-filled variants can offer slightly enhanced cushioning. For UK conditions — where wet weather is constant — solid rubber is generally preferred for its impermeability.

Key Technical Specifications

Specification	Typical Value
Thickness	17mm (±1mm tolerance)
Standard mat size	1.83m × 1.22m (6ft × 4ft)
Weight per mat	Approx. 22–28kg
Density	1,100–1,300 kg/m³
Surface finish	Patterned (diamond/studded) for grip
Temperature resistance	-20°C to +70°C
Typical coverage	2.23m² per standard mat

Types of 17mm Stable Mats Available in the UK

Interlocking Stable Mats

Interlocking 17mm mats feature jigsaw-style or straight-edge tongue-and-groove connections that prevent movement and eliminate gaps. This is particularly important in active stable environments where horses paw or move bedding constantly. Interlocking systems create a virtually seamless floor, improving hygiene and reducing the risk of a hoof becoming caught in a gap.

Loose-Lay Stable Mats

Standard loose-lay mats are butted together without mechanical connection. Their weight (often 25kg+ per mat) keeps them in place in most situations. These are simpler to install and remove for deep cleaning. Many professional yard managers prefer loose-lay mats for ease of maintenance.

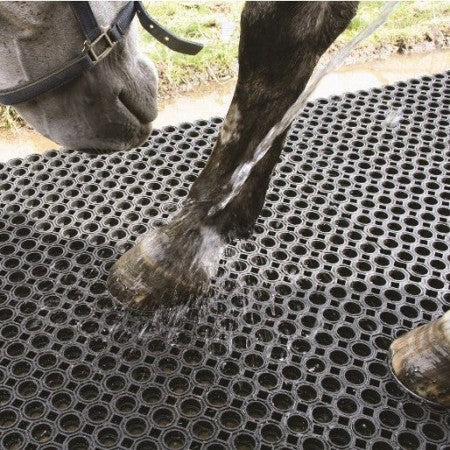

Equine Walker and Washdown Mats

17mm rubber mats are also used in horse walkers and washdown bays. In these settings, enhanced drainage is critical — look for mats with drainage slots or a raised-profile surface that channels water away efficiently.

Benefits of 17mm Stable Mats for Horses

Reduced Bedding Costs

One of the most significant financial benefits of 17mm stable mats is the dramatic reduction in bedding required. A properly matted stable requires approximately 50–70% less bedding than an unmatted concrete floor. Over a 12-month period, bedding savings alone typically offset the initial mat purchase cost for most livery yards.

Joint and Limb Health

Veterinary guidance from the British Equine Veterinary Association (BEVA) consistently supports the use of rubber stable matting to reduce concussive forces on horse limbs. 17mm mats absorb vibration effectively, reducing the risk of conditions associated with hard standing, including pedal bone rotation in barefoot horses and stress on tendons and fetlocks.

Thermal Insulation

Concrete is a significant thermal conductor — horses standing on bare concrete lose body heat rapidly through their hooves. Rubber at 17mm provides measurable thermal resistance, keeping horses warmer in winter months and reducing susceptibility to cold-related health issues.

Easy Hygiene Management

Rubber matting resists urine and ammonia absorption when properly maintained. The impermeable surface can be power-washed, disinfected with approved equine disinfectants, and dried quickly — essential for biosecurity in professional yard environments.

UK Standards and Compliance

When purchasing 17mm stable mats in the UK, look for products that meet relevant British and European standards:

• BS EN ISO 868 — Shore hardness testing for rubber compounds, ensuring appropriate flexibility
• BS EN ISO 7619 — Durometer hardness measurement
• Products should be free from harmful heavy metals and comply with REACH regulations (Registration, Evaluation, Authorisation and Restriction of Chemicals)
• HSE guidance on stable flooring (from the Health and Safety Executive's agricultural publications) recommends non-slip surfaces for all working equine environments

How to Choose the Right 17mm Stable Mats

Consider Your Stable Configuration

For standard UK loose boxes (typically 12ft × 12ft or 3.6m × 3.6m), you'll need approximately 7–8 standard 6ft × 4ft mats. Measure your stable carefully and account for door frames, feed manger positions, and any fixed fixtures.

Surface Profile and Anti-Slip Performance

All quality 17mm stable mats feature textured surfaces — diamond plate, stud patterns, or raised geometric designs. For washdown areas and horse walker floors, prioritise mats with deeper channel profiles for improved drainage. For loose boxes, the surface texture primarily serves anti-slip purposes during the horse's movement.

Budget Considerations

In the UK market, quality 17mm stable mats typically cost in the range of £30–£60 per mat (approximately £15–£27 per m²), depending on quality, manufacturer, and quantity purchased. Bulk orders from specialist rubber flooring suppliers like Rubberco often attract significant discounts. Factor in free UK delivery, which leading suppliers offer for orders above a minimum threshold.

Installation Guide for 17mm Stable Mats

Substrate Preparation

The sub-floor must be level, clean, and structurally sound before laying stable mats. Any significant undulations greater than 5mm over a 2-metre span should be addressed with a self-levelling compound. Remove all loose debris, old bedding, and contaminants. Allow concrete floors to dry thoroughly before installation.

Laying Pattern

Start from the most visible or highest-traffic corner of the stable. For interlocking mats, follow the manufacturer's designated male/female edge orientation. For loose-lay mats, use a brick-bond pattern (staggering joins by half a mat width) to minimise the risk of mats shifting. Leave a 5mm expansion gap around fixed fixtures.

Securing Options

In most stable applications, 17mm mats are heavy enough to remain in place without adhesive. However, for horse walker curves or areas with significant lateral forces, mats can be secured with rubber-compatible flooring adhesive applied to 50% of the mat underside. Never fully bond stable mats — partial bonding allows for removal and cleaning.

Where to Buy 17mm Stable Mats in the UK

For the best selection of 17mm stable mats in the UK, look for specialist rubber flooring suppliers rather than general agricultural merchants. Specialist suppliers offer:

• Wider product range with different profiles and specifications
• Technical expertise and accurate coverage calculations
• Free UK mainland delivery on qualifying orders
• Trade accounts for professional yard managers and equestrian centres

Browse Rubberco's full range of stable mats — supplied directly to your yard across the UK with free delivery. For all equestrian rubber flooring needs, visit Rubberco, one of the UK's leading rubber flooring specialists.

Frequently Asked Questions

How many 17mm stable mats do I need for a 12×12 loose box?

A standard 12ft × 12ft (3.66m × 3.66m) loose box requires approximately 7–8 standard 6ft × 4ft mats. We recommend calculating the exact square meterage and dividing by the mat coverage (2.23m² for a 6×4 mat), then rounding up by one mat to allow for cuts around door frames and fixed fixtures.

Are 17mm stable mats suitable for horse walkers?

Yes, 17mm rubber mats are widely used in horse walkers. For curved walker sections, some suppliers offer pre-cut or flexible mat options. The surface profile for walker applications should prioritise drainage and grip — look for mats with channel drainage features.

How long do 17mm stable mats last?

Quality vulcanised rubber stable mats at 17mm thickness typically last 10–20 years with normal use. Rubber is highly resistant to UV, temperature extremes, urine, disinfectants, and mechanical abrasion. The main causes of premature failure are ultra-sharp objects (metal shavings, nails) penetrating the surface, or chemical damage from petroleum-based products.

Can 17mm stable mats be used outside?

Yes — quality rubber mats are fully weatherproof and UV-stabilised. 17mm rubber mats are suitable for outdoor hard standings, wash-down areas, and yard surfaces. Ensure the mat has an adequate anti-slip profile for outdoor wet conditions.

Do 17mm stable mats need adhesive?

In most stable applications, no adhesive is required. The weight of 17mm mats (20–28kg each) provides sufficient stability. Interlocking designs further prevent movement. Adhesive may be appropriate for ramps, horse walker curves, or areas with extreme lateral forces.

What's the difference between 17mm and 22mm stable mats?

17mm is the standard and most popular thickness for general stable use, offering the right balance of cushioning, weight, and cost. 22mm mats provide additional padding and are preferred for high-welfare facilities, breeding mares in late pregnancy, horses with joint conditions, or competition yards seeking maximum comfort. 22mm mats typically cost 20–30% more per square metre.
