Rubber Tiles UK — The Complete Buyer's Guide for Gyms, Garages, Playgrounds & Industry
Last updated: April 2026
Rubber tiles are the go-to flooring solution for UK gyms, garages, playgrounds, schools, and industrial premises — and for good reason. They combine the superior durability and slip resistance of solid rubber with the convenience of a DIY-friendly interlocking format. This guide covers everything you need to know before buying rubber tiles in the UK: types, thicknesses, applications, standards, and what to look for.
What Are Rubber Tiles?
Rubber tiles are pre-cut, uniform-sized sections of vulcanised rubber flooring, typically supplied with an interlocking tab-and-slot system that allows them to be installed without adhesive. They are manufactured from either SBR (Styrene Butadiene Rubber) — usually black, recycled content — or EPDM (Ethylene Propylene Diene Monomer) — available in colours, UV stable for outdoor use.
Most UK rubber tiles are 500mm × 500mm or 1m × 1m in plan dimensions, with thicknesses ranging from 5mm for light protection up to 40mm for playground safety surfaces certified under BS EN 1177.
Types of Rubber Tiles Available in the UK
Interlocking Gym Rubber Tiles
The most widely sold rubber tile format in the UK. Typically 1m × 1m, 8–20mm thick, manufactured from recycled SBR rubber with a smooth or fine-studded surface. Designed to handle the constant foot traffic, equipment loads, and occasional dropped weights of a home or commercial gym. No adhesive required — the tiles interlock and stay in position under their own weight.
Key specifications to look for:
- Density: 1,000–1,200 kg/m³ (denser = more durable, better impact absorption)
- Surface: smooth (low friction) or fine studded (better grip under load)
- Shore hardness: 55–65 Shore A for gym applications
- Recycled content: typically 90%+ recycled rubber (green credentials)

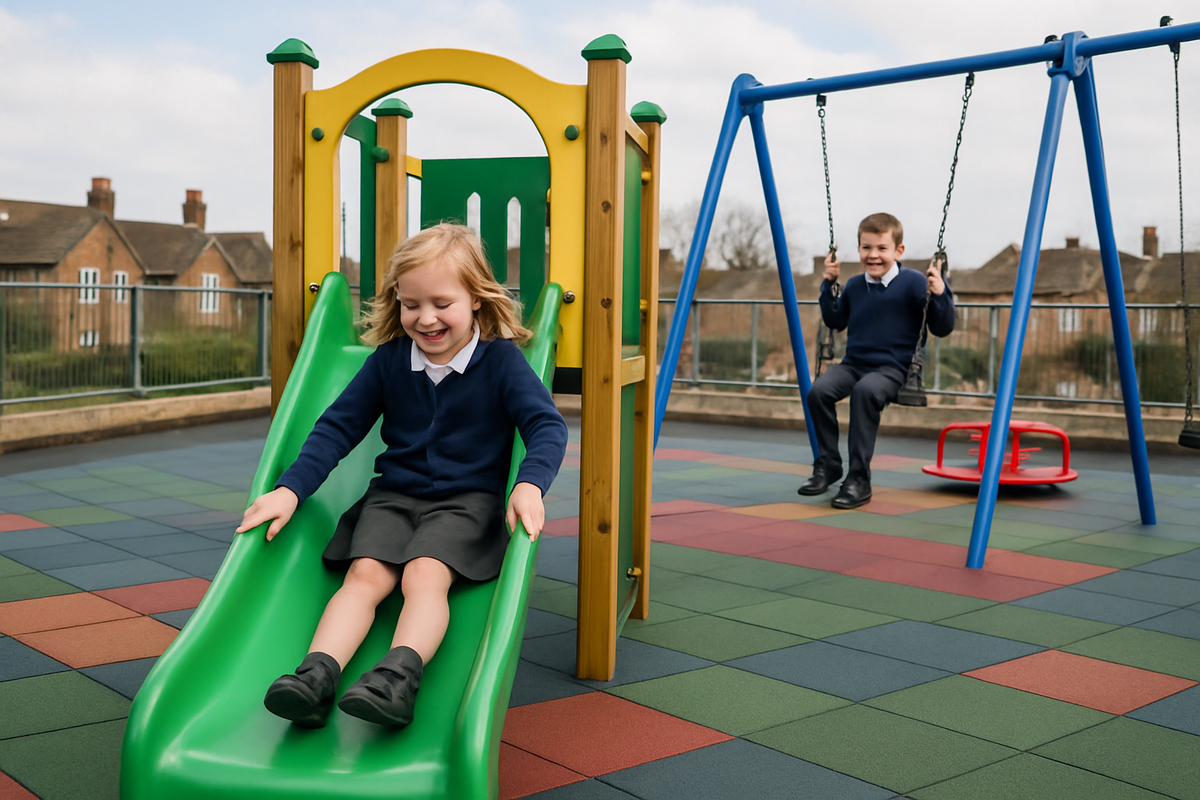

Playground Rubber Safety Tiles
Playground rubber tiles in the UK must be certified to BS EN 1177:2018, which governs critical fall height (CFH) protection — the maximum height from which a child can fall onto the surface without risk of life-threatening head injury. Tile thickness determines CFH:
| Tile Thickness | Critical Fall Height (CFH) | Typical Use |
|---|---|---|
| 20mm | Up to 1.0m | Low equipment, general play areas |
| 30mm | Up to 1.5m–2.0m | Standard playground equipment, swings |
| 40mm | Up to 3.0m | Climbing frames, tall equipment |
| 50mm | Up to 3.5m | High-level climbing, specialist installations |
Always check that playground tiles carry a third-party test certificate (not just a manufacturer claim) showing compliance with the relevant CFH for your equipment.
Industrial & Warehouse Rubber Tiles
In industrial settings, rubber tiles reduce worker fatigue, absorb machine vibration, and protect concrete subfloors from damage. Heavy-duty industrial tiles are typically 20–25mm thick with a diamond-plate, chevron, or ribbed top surface for maximum grip under forklift and pallet truck traffic. Available in modular formats with interlocking connectors rated for heavy rolling loads.
Garage Rubber Floor Tiles
Coin-top and studded rubber tiles are the standard choice for UK domestic and commercial garages. The raised surface profile channels water away, provides excellent grip in wet conditions, and resists oil, grease, and common automotive chemicals. Garage rubber tiles are typically 8–15mm thick and can be lifted and relaid easily if you redecorate or move premises.
Outdoor Rubber Tiles (EPDM)
EPDM rubber tiles are formulated specifically for outdoor and UV-exposed applications. Unlike SBR (which degrades under prolonged UV exposure), EPDM maintains its physical properties through years of outdoor use. Available in a range of colours. Suitable for roof terraces, patio areas, schools, nurseries, and any external surface requiring a durable, slip-resistant finish.
Acoustic Rubber Tiles
Dense rubber tiles provide significant impact sound insulation — reducing the transmission of footfall noise, dropped equipment, and machine vibration through floor structures. Used in home studios, music rooms, multi-storey apartment blocks, and under gym equipment. For maximum acoustic performance, use a floating tile installation (no adhesive) over a resilient isolation layer.
How to Choose the Right Rubber Tiles for Your Project
Step 1: Define the Application
Gym, garage, playground, industrial? Each has different requirements for thickness, surface profile, material (SBR vs EPDM), and certification. Identify the primary use case first — then match the tile specification to the demand.
Step 2: Determine Required Thickness
Impact protection requirements determine minimum thickness. Use our thickness guide above. Always err on the side of a thicker tile — the cost difference is small and the improvement in floor feel, protection, and longevity is significant.
Step 3: Check for Certifications
For playgrounds: demand BS EN 1177 third-party test certificate.
For electrical safety areas: check for BS EN 61111 compliance.
For commercial food preparation: check for food-safe rubber certification.
For gyms: no specific certification is required, but ISO 9001 manufacturing is a good quality indicator.
Step 4: Calculate Your Area
Measure length × width. Add 5–10% for waste (cuts at edges). 1m × 1m tiles make calculation straightforward. 500mm × 500mm tiles give you 4 tiles per m². Order border strips at the same time as the tiles.
Step 5: Consider Installation Method
For temporary or semi-permanent installations: interlocking tiles, no adhesive.
For permanent commercial installations: perimeter adhesive plus interlocking tiles.
For outdoor playground surfaces: bedded onto compacted MOT Type 1 sub-base with polyurethane adhesive between tiles.
UK Standards for Rubber Tiles
- BS EN 1177:2018 — Impact attenuating playground surfacing (mandatory for playground safety tiles)
- BS EN 13501-1 — Fire classification of construction products (relevant for commercial buildings)
- BS EN 14041 — Resilient floor coverings (including rubber tiles in commercial applications)
- BS 7188:1998 — Specification for impact-absorbing playground surfacing
- BS EN 61111 — Electrical insulating rubber matting (for electrical switchgear rooms)
Rubber Tiles vs Rubber Rolls — Which Should You Choose?
| Factor | Rubber Tiles | Rubber Rolls |
|---|---|---|
| Installation ease | ✅ Very easy — no tools or adhesive | ⚠️ Requires trimming, often adhesive |
| Portability | ✅ Fully removable and reusable | ❌ Difficult to move once laid |
| Individual damage | ✅ Replace single tile | ❌ Requires patching or full replacement |
| Coverage | ⚠️ More joints visible | ✅ Seamless in one piece |
| Cost per m² | ⚠️ Slightly higher | ✅ Often lower per m² |
| Large areas | ⚠️ More tiles to handle | ✅ Faster for large open areas |
| Odd-shaped rooms | ✅ Easy to cut and fit | ⚠️ Complex cuts in awkward spaces |
Top Rubber Tile Products from Rubberco
Browse our full range of rubber floor tiles — available for free UK delivery:
- All Rubber Floor Tiles
- Gym Flooring Tiles & Rolls
- Playground Safety Tiles (BS EN 1177)
- Garage Rubber Floor Tiles
- Industrial Rubber Floor Tiles
Frequently Asked Questions — Rubber Tiles UK
Are rubber tiles suitable for outdoor use?
SBR rubber tiles are best used indoors or in covered outdoor areas. For fully exposed outdoor use, choose EPDM rubber tiles, which are UV-stabilised and weather resistant for year-round outdoor performance in the UK climate.
What is the minimum thickness for a home gym floor?
8mm for cardio-only areas. 15mm if you use free weights. 20mm for barbell drops and Olympic lifting. If you are planning a multi-use space, 15mm is the best single-thickness compromise.
Can I lay rubber tiles over underfloor heating?
Yes, but check the maximum surface temperature specification for the tiles. Most rubber tiles tolerate floor temperatures up to 40°C, but continuous high temperatures can affect rubber longevity. Ensure the tile installation method allows for thermal expansion (interlocking, non-adhesive is preferable over fully bonded).
Do rubber floor tiles smell?
New SBR rubber tiles may have a temporary rubber odour for the first 2–4 weeks. This is completely harmless and dissipates with ventilation. EPDM tiles tend to have less off-gassing. Premium tiles from quality manufacturers have lower odour levels than cheap imported products.
How much do rubber floor tiles cost in the UK?
Price depends on thickness and tile size. As a rough guide: 10mm interlocking gym tiles cost approximately £12–£18 per m². 20mm playground safety tiles run £25–£40 per m². Industrial heavy-duty tiles are typically £18–£30 per m². Free delivery from Rubberco on all UK orders reduces the total cost significantly compared to paying per-pallet delivery charges.
