Rubber Matting for Dairy Farms, Cow Cubicles & Milking Parlours: UK Welfare, AHDB & Red Tractor Specification Guide 2026
Why Dairy Farms Need Specialist Rubber Flooring
UK dairy farming operates on tight margins, yet the cost of lameness — the second most common welfare condition in dairy cattle after mastitis — is estimated at £180–£280 per case by AHDB Dairy. With an average UK herd of 155 cows experiencing 20–30% annual lameness incidence, the financial case for proper underfoot welfare surfaces is compelling. Rubber matting is not a comfort upgrade; it is a welfare and productivity investment with measurable return.
The UK dairy industry comprises approximately 8,600 commercial dairy farms (DEFRA, 2024), with a total herd of around 1.85 million dairy cows. As housing intensity increases — with more UK herds moving to year-round or extended winter housing — the quality of flooring in cow cubicles, milking parlours, collecting yards, and handling races has direct consequences for herd health, milk yield, fertility, and farm profitability.
UK Regulatory & Welfare Framework for Agricultural Flooring
| Regulation / Standard | Key Flooring Requirement |
|---|---|
| Animal Welfare Act 2006 | Duty of care — must provide environment that prevents pain, injury and disease. Non-slip surfaces are a core obligation. |
| DEFRA Code of Recommendations for the Welfare of Livestock: Cattle (2003) | Floors must be non-slip, well-drained, comfortable and not injurious to cattle. Lying areas must be clean and dry. |
| Red Tractor Farm Assurance — Dairy (2024 Standard) | Cubicle dimensions and flooring materials specified. Requires adequate bedding or cushioned lying surfaces. Slippery floors trigger non-conformance. |
| RSPCA Assured (formerly Freedom Foods) | Stricter welfare overlay — requires that all areas routinely used by cattle provide good grip underfoot. Bare concrete in milking parlours is increasingly flagged. |
| Dairy UK / AHDB Lameness 5-Point Plan | Flooring identified as one of five core intervention points for reducing lameness. Recommends rubber in collecting yards, race approaches, and parlour standings. |
| Workplace (Health, Safety & Welfare) Regulations 1992 — Reg 12 | Applies to staff working areas (milking parlour, dairy, handling pens). Employer duty to provide safe floor surfaces with PTV ≥36 dry, ≥40 wet. |
| Health & Safety at Work Act 1974 | General employer duty to ensure, so far as reasonably practicable, health and safety of employees. Applies to all farm staff areas. |
| Environmental Permitting Regulations 2010 | Indirect impact: flooring in slurry and effluent areas must be impervious and cleanable. Cracked concrete risks environmental permit non-compliance. |
Rubber Compound Selection for Agricultural Environments
Agricultural environments present a demanding combination of challenges: ammonia from urine, slurry acids, diesel and hydraulic fluid from machinery, UV exposure in yard areas, extreme temperature cycling in unheated buildings, and sustained mechanical loading from hoof traffic averaging 450–600 kg per animal.
| Compound | Ammonia Resistance | Acid/Slurry | Oil/Diesel | UV/Outdoor | Min Temp | Agricultural Use |
|---|---|---|---|---|---|---|
| SBR (Styrene-Butadiene) | Good | Moderate | Poor | Moderate | -40°C | Cubicle liners, straw yards, indoor races — primary general-purpose choice |
| Recycled SBR | Good | Moderate | Poor | Moderate | -40°C | Collecting yards, outdoor standings — cost-effective, 70–95% recycled content |
| EPDM | Excellent | Good | Poor | Excellent | -40°C | Outdoor collecting yards, external races, silage clamp aprons — UV and weather resistant |
| Nitrile (NBR) | Good | Moderate | Excellent | Poor | -30°C | Workshop areas, fuel storage zones, machinery maintenance floors |
| Neoprene | Good | Good | Good | Good | -35°C | Specialist areas needing chemical and oil resistance with outdoor exposure |
Key recommendation: For standard dairy housing (cubicles, indoor races, milking parlour): SBR. For outdoor and UV-exposed areas: EPDM or recycled SBR. For workshop and machinery areas: Nitrile. Avoid natural rubber in high-ammonia environments — it degrades under sustained ammonia exposure faster than SBR or EPDM.
Zone-by-Zone Specification Guide

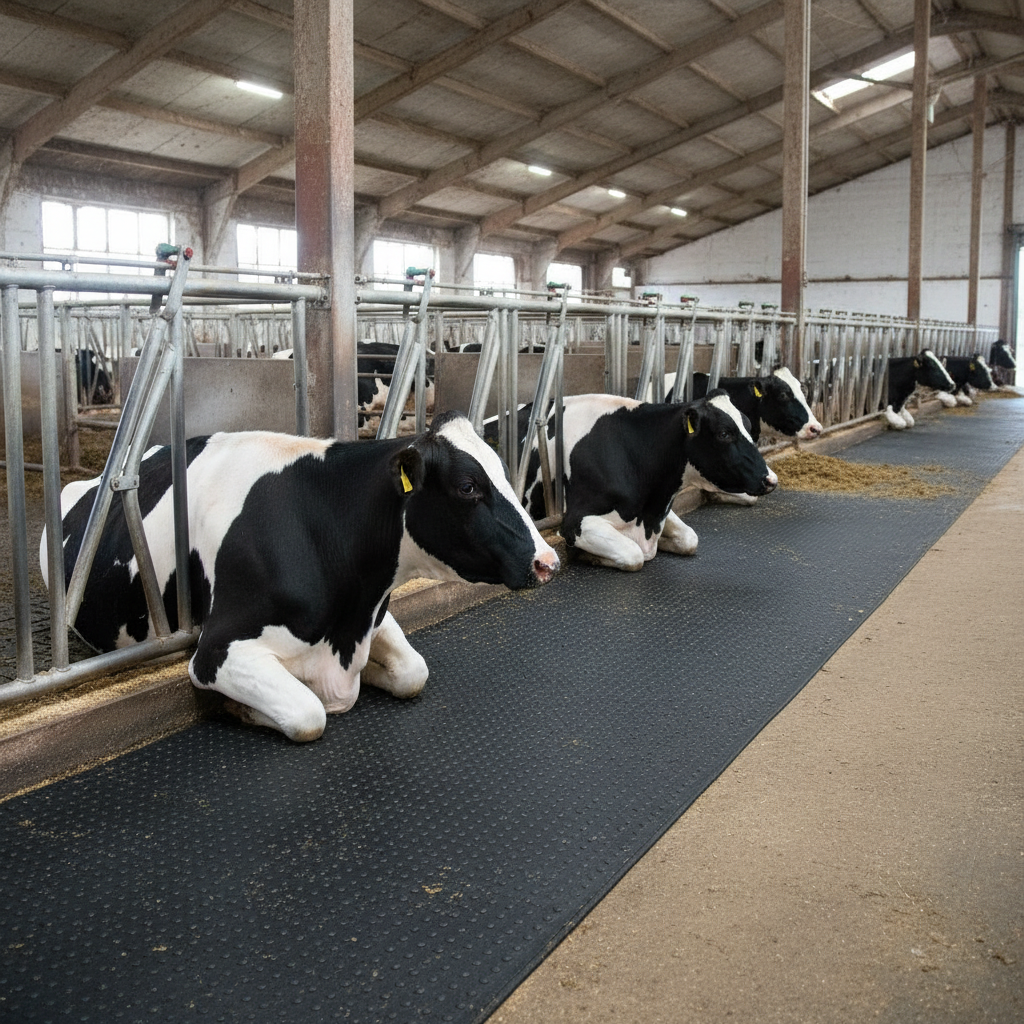

1. Cow Cubicle Liners
Cubicle rubber matting — also called cow mattresses or cubicle mats — is the most welfare-critical application. The research is clear: cows given cushioned lying surfaces spend 1.5–2 hours more per day lying down (AHDB, 2019), which directly correlates with improved milk yield (each additional hour of lying = +1.5–2 kg milk/day/cow), reduced lameness incidence, better reproductive performance, and lower somatic cell counts.
- Product type: Solid rubber mat or foam-topped composite mat
- Compound: Virgin or high-grade SBR, 40–60 Shore A
- Thickness: Minimum 17mm solid rubber; composites 40–60mm with foam layer
- Surface texture: Ribbed or profiled for grip — smooth surfaces cause cows to hesitate when rising
- Width: Matched to cubicle width — standard UK Holstein cubicle 1,150–1,200mm wide
- Length: 1,800–2,100mm depending on cubicle type (forward-lunge vs limiting kerb)
- Key specs: Tensile strength ≥8 MPa, elongation at break ≥300%, pH-neutral composition, non-toxic to cattle
- Red Tractor note: Cubicle mats must not create a tripping hazard at the kerb. Ensure flush fitting with curb or appropriate transition strip.
2. Milking Parlour Standings
Milking parlour rubber is a dual-welfare product: it protects cow hooves and leg joints during milking, and protects milkers (farm staff) from slips on wet, detergent-washed concrete surfaces — making it a legal requirement under Workplace Regulations 1992 as well as an animal welfare measure.
- Product type: Solid rubber matting, ribbed or studded surface
- Compound: SBR or Virgin Rubber — must be food-safe adjacent and chemical-resistant to parlour detergents (alkaline CIP agents, iodine, chlorine-based teat dip)
- Thickness: 12–20mm
- Surface: Open drainage profile preferred — allows detergent and water to drain from surface, reducing hoof maceration risk
- Chemical compatibility: Verify compatibility with farm's CIP chemicals. SBR generally tolerant of dilute alkalis and mild acids. Avoid prolonged contact with undiluted iodine solutions — can degrade SBR surface.
- Staff areas: PTV ≥55 wet (HSE guidance for wet-process food areas applies analogously)
- Key note: Replace when surface profile is worn flat — a smooth worn mat in a wet milking parlour provides minimal slip protection.
3. Collecting Yard & Holding Area
The collecting yard is where lameness damage accumulates. Cows standing on hard concrete for 1–2 hours pre-milking, often 3 times daily in high-yield herds, experience significant claw horn disruption. AHDB data shows lameness risk increases by 2.1× in herds with bare concrete collecting yards vs rubber-surfaced equivalents.
- Product type: Heavy-duty rubber matting — rolls or interlocking slabs
- Compound: Recycled SBR (cost-effective, high volume area) or EPDM for outdoor/semi-outdoor yards
- Thickness: Minimum 17mm; 23–28mm for large herds with prolonged standing
- Surface texture: Grooved or profiled — provides grip on sloped yard surfaces
- Drainage: Design floor falls (1:50 to 1:80) before laying. Use open-profile or perforated matting in the highest-traffic zones.
- Coverage: Cover entire standing area — partial matting creates a trip hazard at the mat edge and negates welfare benefit at uncovered sections
- Weight loading: Specify ≥500 kg/m² point load capacity for scraper equipment
4. Handling Race & Crush Approach
Races leading to the crush, footbath, or AI/examination pen are high-anxiety areas where cattle are moved with pressure. Slipping in a race triggers flight response and causes injury to cattle and handlers. DEFRA welfare codes and RSPCA Assured standards both highlight race surfaces as a welfare priority.
- Product type: Ribbed rubber matting or rubber race strips (can be applied to existing concrete)
- Compound: SBR or recycled SBR
- Thickness: 17–23mm
- Surface: Longitudinal ribs or diamond stud pattern — provides grip in the direction of cattle movement
- Installation: Fix securely — loose or lifting mats cause cattle to shy away and create handling difficulties. Mechanical fixings or suitable adhesive. Allow for manure scraper clearance.
5. Calving Area
Calving pen flooring must balance comfort, hygiene, and grip. A cow going down to calve on bare slippery concrete risks perineal and udder injury; a newborn calf on a cold, wet concrete surface faces hypothermia and infection risk within the critical first hour.
- Product type: Portable rubber calving mats or permanent solid rubber floor
- Compound: Virgin SBR — non-toxic, easy to clean between calvings
- Thickness: 20–25mm (thermal insulation from concrete important for newborn)
- Surface: Textured for grip, smooth enough for easy cleaning
- Hygiene: Clean and disinfect between each calving. Compatible with Virkon S, F10, chlorhexidine-based disinfectants and pressure washing.
- Drainage: Ensure good fall to drain in calving pen — uterine fluids and colostrum spills must drain freely
6. Dairy Outbuildings, Plant Rooms & Agricultural Workshop
- Workshop/plant room: Nitrile matting — oil and diesel resistance essential
- Chemical store: EPDM — broad chemical resistance, UV stable
- Staff welfare areas (WC, rest room, changing): SBR tiles — non-slip, easy clean
- Silage clamp apron: Thick recycled SBR — high abrasion from telehandler tyres
Zone Specification Summary Table
| Zone | Product Type | Compound | Min Thickness | Surface | Key Spec |
|---|---|---|---|---|---|
| Cow Cubicle Liners | Solid mat or composite | Virgin/SBR | 17mm solid (40mm composite) | Ribbed | ≥8 MPa tensile, 40–60 Shore A |
| Milking Parlour | Solid roll/sheet | SBR / Virgin | 12–20mm | Ribbed/open drain | PTV ≥55 wet, CIP chemical resistant |
| Collecting Yard | Heavy duty roll/slab | Recycled SBR / EPDM | 17–28mm | Grooved/profiled | ≥500 kg/m² load, scraper clearance |
| Handling Race | Roll or strips | SBR / Recycled | 17–23mm | Longitudinal ribs | Secure fixing, scraper clearance |
| Calving Area | Portable mat / permanent | Virgin SBR | 20–25mm | Textured | Disinfectable, thermal insulating |
| Workshop / Plant Room | Roll or tiles | Nitrile | 6–12mm | Ribbed | Oil/fuel resistance, PTV ≥40 |
| Silage Clamp Apron | Heavy duty roll | Recycled SBR | 23mm+ | Studded | High abrasion resistance, tyres |
Rubber vs Concrete: Performance Comparison
| Property | Rubber (SBR/EPDM) | Plain Concrete | Grooved Concrete | Slotted Concrete |
|---|---|---|---|---|
| Hoof grip (wet) | Excellent | Poor–Fair | Good | Fair |
| Lameness prevention | Excellent (AHDB evidence) | Poor | Moderate | Moderate |
| Lying comfort (cubicles) | Excellent | Poor | Poor | Poor |
| Joint protection | Excellent | Poor | Poor–Moderate | Poor–Moderate |
| Staff slip safety | Excellent | Poor wet | Good | Good |
| Cleanability | Excellent | Good | Good (if shallow) | Fair (slurry trapping) |
| Thermal comfort | Good (insulating) | Poor (cold conduction) | Poor | Poor |
| Installation disruption | Low (overlay) | High (full floor) | Medium | High |
| Lifespan | 10–20 years (cubicle) | 20+ years | 10–15 years (groove wear) | 15+ years |
| Capital cost (£/m²) | £15–£45 | £20–£50 (new slab) | £25–£60 (grooving) | Higher |
The Lameness ROI Case for Rubber Matting
AHDB Dairy's 5-Point Lameness Plan quantifies the investment case for rubber flooring:
- Cost of one clinical lameness case: £180–£280 (treatment, milk loss, reduced fertility, culling risk)
- Average herd of 200 cows at 25% lameness prevalence: 50 cases/year = £9,000–£14,000 annual loss
- Evidence-based reduction from rubber collecting yard: Studies show 20–35% reduction in lameness incidence (Chapinal et al., 2013; Vokey et al., 2001)
- Rubber collecting yard (200 cow herd at 150m²): Approximately £5,000–£9,000 installed
- ROI: Typically recovered within 12–18 months through lameness savings alone — before accounting for milk yield improvements from better lying times on cubicle mats
Installation Considerations
Sub-base Requirements
Rubber matting in agricultural environments is typically laid over existing concrete. Key sub-base checks:
- Structural integrity: Existing concrete must be sound — rubber will not bridge cracks under hoof loading. Repair significant cracks first.
- Falls: Check existing drainage falls (minimum 1:50 for yards, 1:80 for indoor parlour). Pooled liquid under rubber mats accelerates degradation.
- Contamination: Old concrete in milking parlours may have embedded fat or milk stone — clean and degrease before laying rubber over.
- Level: Large mats bridging a level change will rock. Level significant steps before installation.
Fixing Methods
- Cubicle mats: Often unfixed (weight and kerb contain them). Some operators pin-fix at rear edge with plastic washered bolts through pre-drilled holes.
- Race and collecting yard: Mechanical fixing recommended for areas with scraper equipment. Use countersunk stainless fixings — flush with surface to avoid scraper damage.
- Milking parlour: Two-part polyurethane adhesive or mechanical fixing. Adhesive-only in high-pressure-wash environments may lift over time — combination fixing preferred.
Scraper and Equipment Compatibility
Automatic scrapers (reciprocating or rotating) must be set with sufficient clearance above rubber surface — typically 3–5mm. Scraper blades contacting rubber continuously will cause accelerated edge wear. A worn rubber edge should be monitored and the mat replaced when it creates a trip hazard or the surface profile is lost.
Maintenance Protocol
| Frequency | Task |
|---|---|
| Daily | Slurry scraping, check for displaced or lifting mats, remove gross soiling from milking parlour |
| Weekly | Pressure wash milking parlour mats, check cubicle mat alignment and fitting, inspect race mats for fixing integrity |
| Monthly | Check all mat surfaces for wear depth loss, cracks, or delamination. Inspect edges and transitions. |
| Annually | Full inspection and condition assessment. Replace any mats with worn surface profile, exposed substrate, or significant cracking. |
| Avoid | Petroleum solvents for cleaning, steam above 80°C on SBR compounds, abrasive cleaning tools that score surface texture |
Frequently Asked Questions
How thick should rubber matting be in cow cubicles?
AHDB recommends a minimum of 17mm of solid rubber in cow cubicles. Foam-topped composite mats are typically 40–60mm total thickness. Thicker mats provide better cushioning and thermal insulation from cold concrete. Virgin SBR at 40–60 Shore A is the standard specification.
Will rubber collecting yard mats work with my automatic slurry scraper?
Yes — but scraper clearance must be set correctly. Automatic scrapers should be set 3–5mm above the rubber surface. If the scraper blade contacts the rubber during each pass, the edge wear is significant. Mechanical fixings with flush-head stainless fixings countersunk below the surface are recommended in scraper areas.
Is rubber matting compliant with Red Tractor Farm Assurance?
Yes. Red Tractor Dairy standards require lying areas to be comfortable, clean and dry. Rubber cubicle liners and collecting yard matting directly address these requirements. RSPCA Assured similarly recommends cushioned lying surfaces and non-slip flooring in all cattle areas.
Can I use rubber matting in my milking parlour with CIP cleaning?
Yes. SBR and virgin rubber are generally compatible with CIP alkaline detergents, acid rinse agents, iodine-based teat dip at normal dilution, and pressure washing. Avoid prolonged contact with undiluted iodine or neat hypochlorite. EPDM offers slightly better chemical resistance for more aggressive CIP chemistry.
How often do dairy farm rubber mats need replacing?
Cubicle mats: typically 8–15 years with good maintenance. Collecting yard mats: 5–10 years under heavy use. Milking parlour: 5–8 years in high-throughput parlours. Replace when the surface profile is worn flat, cracking is deep, or cushioning is lost. Annual inspection is recommended.
Does rubber matting in the collecting yard actually reduce lameness?
Yes — consistently. Studies by Chapinal et al. (Journal of Dairy Science, 2013) and Vokey et al. (2001) show significant reductions in hoof lesions and gait score deterioration in herds with rubber collecting yards vs bare concrete. AHDB Dairy's 5-Point Lameness Plan explicitly includes rubber collecting yard surfaces as one of five evidence-based interventions. Payback typically within 12–18 months through lameness savings alone.
