Horse Arena Rubber Flooring UK: Arena Surfaces, Crumb Rubber, Specifications & Expert Guide 2026
Last updated: June 2026 — Content reviewed and expanded with new FAQs and 2026 guidance.
Horse arena rubber flooring is a specialist category quite distinct from standard stable matting. Where stable mats are used to provide a comfortable, hygienic base in individual loose boxes, arena rubber surfaces are specified to perform under the dynamic load of horses moving at speed — trot, canter, and gallop — while providing correct footing, shock absorption, and energy return for both horse and rider.
Choosing the wrong arena surface is not just a performance issue: inappropriate footing is a significant cause of equine musculoskeletal injury. This guide covers the options, specifications, and considerations for horse arena rubber flooring in the UK.
Types of Horse Arena Rubber Flooring
1. Rubber Crumb Fibre Mix (Wax-Coated)
The premium choice for outdoor and indoor arenas. Recycled rubber crumb (typically 2–4mm particle size) blended with textile fibre (shredded synthetic fibre or natural fibre) and coated with wax. The combination provides:
- Cushioning — rubber crumb absorbs energy on impact
- Drainage — fibre wicks moisture while rubber holds the surface stable
- Grip — the mixed texture prevents front foot slip during fast work
- Consistency — wax coating reduces moisture evaporation and surface variability between wet and dry days
Depth: 80–120mm over a compacted crushed stone base. Suitable for dressage, show jumping, and general schooling. The dominant choice for new arena installations in the UK from 2010 onwards.
2. Pure Rubber Crumb Surface
100% recycled rubber granules without fibre addition. Heavier and more stable than crumb/fibre mix but lacks the footing ‘bite’ provided by fibre. Better suited to covered schools where moisture variation is controlled. Less common than the blend in new UK installations.
3. Silica Sand & Rubber Crumb Blend
Silica sand provides firmness and supports deep work; rubber crumb provides cushioning. An older specification, still found in many established UK arenas. Heavier surface — good for flat collected work but less suited to heavy jumping which requires more energy absorption.
4. Rubber Matting Arena Floors (Interlocking Mats)
Used for enclosed spaces where a loose-fill surface isn’t practical: horse walkers, treadmills, wash-down areas, trailer ramps, and indoor arena kickboard bases. Heavy-duty interlocking rubber tiles (typically 17mm–25mm) provide a non-slip, impact-absorbing stable surface that is easier to clean than loose fill. Not suitable as the primary riding surface in large arenas.
5. Rubber-Bound Track Surfaces
For horse walkers and exercise track surfaces, rubber granules can be resin-bound to create a poured-in-place (PIP) surface. Provides consistent footing across all weather conditions with zero maintenance (no raking or harrowing). Higher upfront cost but virtually maintenance-free.
Arena Base Construction for Rubber Surfaces
No rubber surface performs correctly without a properly constructed base. The UK standard for a new outdoor arena:
- Sub-grade preparation — remove topsoil, level and compact native ground, minimum 1:100 fall to edges for drainage
- Type 1 granular sub-base — 150mm compacted MOT Type 1 or clean crushed aggregate
- Permeable membrane — heavy-duty geotextile to prevent fines migration from sub-grade
- Drainage layer — 75–100mm clean angular 10–20mm clean stone, or a geocomposite drainage board
- Secondary geotextile — separates drainage from surface aggregate
- Surface course — rubber crumb/fibre blend to minimum 80mm depth, levelled and harrowed
Inadequate base construction is the primary cause of poor arena surface performance in the UK. A premium surface material will not compensate for a base that holds water, shifts, or develops ruts.
Key Performance Parameters for Arena Rubber
| Parameter | What It Means | Why It Matters |
|---|---|---|
| Surface Hardness / Firmness | Resistance to penetration under hoof strike | Too hard = joint concussion; too soft = tendon strain |
| Energy Restitution | % of impact energy returned to hoof on push-off | Affects horse fatigue and tendon loading |
| Grip / Slip Resistance | Front foot deceleration on landing | Critical for jumping and lateral work |
| Depth Consistency | Uniformity across the arena after use and weather | Variable depth creates uneven loading — injury risk |
| Drainage | Water evacuation rate from surface and base | Standing water changes surface properties and saturation |
Maintenance Requirements: Horse Arena Rubber Surfaces
Even the best rubber arena surface requires regular maintenance to perform correctly:
- Daily harrowing (active arenas) — breaks up compaction from hoof traffic, re-levels the surface, and mixes rubber and fibre back together
- Watering in dry weather — rubber-fibre surfaces need moisture to hold together; wax-coated products reduce watering frequency significantly but do not eliminate it
- Levelling — heavy use areas (jump take-offs and landings, corners) accumulate surface material that must be redistributed
- Top-up every 3–5 years — rubber crumb is gradually lost to edges and compaction; top-up material should match the original specification
- Full renovation every 10–15 years — for heavily used facilities; includes removing, screening, and re-laying the surface, repairing the base

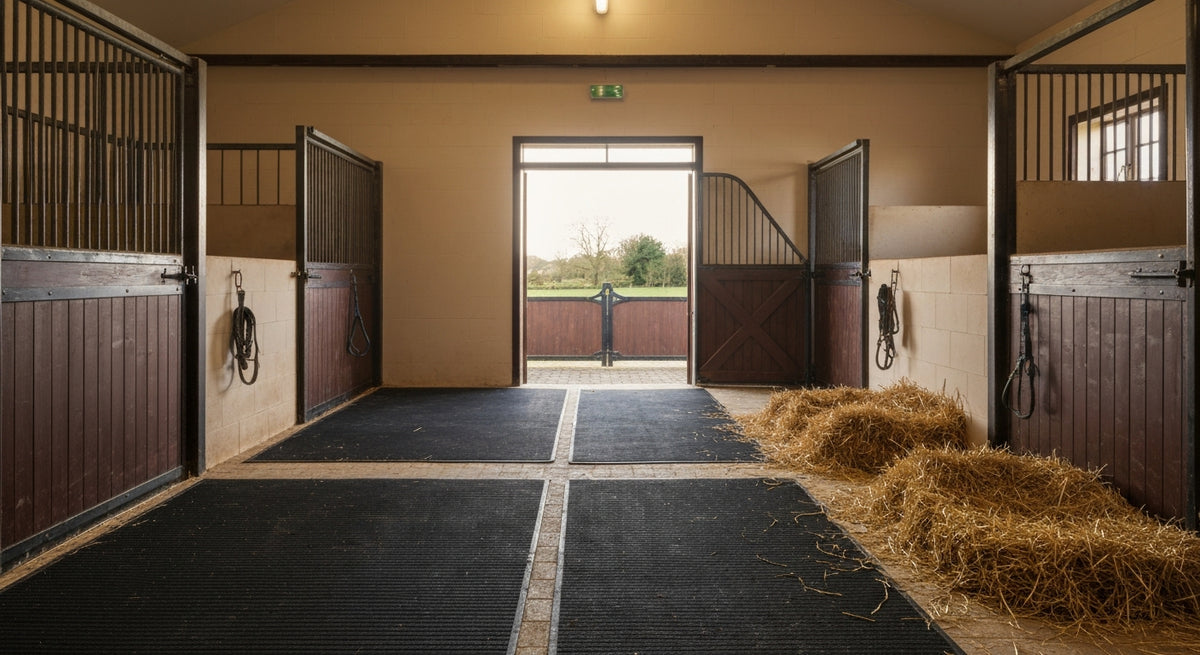

Rubber Stable Matting for Arenas vs Loose Boxes
When people discuss “rubber horse arena flooring”, they sometimes conflate two very different products:
- Arena surface material (rubber crumb/fibre loose fill) — the riding surface itself; laid loose to 80–120mm depth over a prepared base; requires harrowing and maintenance
- Stable matting (interlocking rubber mats) — rigid 17mm–22mm rubber mats laid in loose boxes, horse walkers, trailer floors, and static standing areas
If you need matting for stable loose boxes, horse walkers, or trailer floors, see our horse mats and stable matting range. If you need surface material for a new or refurbished riding arena, contact our team for a custom specification quotation.
Frequently Asked Questions: Horse Arena Rubber Flooring
How much rubber crumb do I need for a horse arena?
A standard 20m × 40m outdoor arena requires approximately 64–96 tonnes of rubber crumb/fibre blend at 80–120mm depth (assuming 0.8 t/m³ bulk density). A 20m × 60m arena requires 96–144 tonnes. Always over-specify slightly — topping up is easier than under-filling.
What size rubber crumb is best for horse arenas?
The standard UK recommendation is 2–4mm shredded rubber crumb (not spherical, not dust). Shredded crumb interlockes better than spherical granules, providing superior grip. Finer than 1mm becomes dusty; coarser than 6mm reduces grip and can cause hoof catching.
Can I use recycled tyre crumb in a horse arena?
Yes — this is the most common source of arena rubber crumb in the UK. Steel wire must be completely removed (magnetically separated) before use. Reputable suppliers provide wire-free certification. The blue wire used in truck tyres is non-ferrous and requires non-magnetic separation — confirm this with your supplier.
How long does a rubber horse arena surface last?
A well-maintained rubber crumb/fibre surface can last 15–20 years before full renovation is required. With regular harrowing, watering, and periodic top-up material, many arenas go much longer. Neglected surfaces (no harrowing, poor drainage, no top-up) deteriorate significantly in 5–7 years.
June 2026 Update: UK Horse Arena Flooring — Key Developments
UK equine facility owners are increasingly specifying wax-coated rubber crumb/fibre blends over basic sand or sand/rubber mixes as the performance benefits become more widely documented. Key trends in UK horse arena flooring as of mid-2026:
- Wax-coated blends now the default for new installations at commercial yards and livery facilities — reduced watering requirements offset the slight price premium in 6–12 months
- Crumb depth monitoring increasingly included in yard maintenance schedules — arena specialists recommend annual depth checks with a metal rod probe to identify compressed areas
- Planning enforcement remains active for larger covered structures — the trend toward covered arenas has brought more LPA scrutiny, particularly in greenbelt and AONB designations
- Rubber stable mats continue to be specified for horse walkers and trailer floors at new-build yards — see our horse mats and stable mats range
Do I need planning permission for an outdoor horse arena in the UK?
In most cases, yes — an outdoor sand or rubber arena with a permanent base structure will require planning permission from your Local Planning Authority (LPA). The rules vary by area, but a covered or partially covered arena almost always requires permission. Even an open menage may be subject to permitted development limits on agricultural land or residential curtilage. Consult your LPA before beginning any construction. The British Horse Society (BHS) and your local planning department are the best starting points for current guidance in your area.
What is the difference between wax-coated and non-waxed rubber crumb for horse arenas?
Wax-coated rubber crumb is treated with a thin film of paraffin wax that reduces moisture evaporation from the surface. This significantly reduces how often you need to water the arena — especially important in the dry UK summer months. Non-waxed crumb loses moisture more rapidly and needs watering far more frequently to maintain safe footing. For most UK arenas used throughout the year, wax-coated rubber/fibre blend is the preferred specification. The premium is typically 15–25% over unwaxed crumb but pays back quickly in reduced maintenance time.
How do I repair a damaged area of my horse arena rubber surface?
For surface depressions or uneven areas: rake the surrounding rubber crumb into the depression, tamp level, and compact by harrowing. If the rubber crumb is displaced (moved to the edges), collect it back from the sides and redistribute across the arena. For bare patches where the base is visible, add fresh top-up rubber crumb/fibre material to match the surrounding depth. Avoid using different specification crumb to what is already in your arena — mixing particle sizes and wax/non-wax material causes uneven surface behaviour. Contact your original arena installer or Rubberco for specification-matched top-up material.
Is rubber crumb from car tyres safe for horses?
Yes — properly processed tyre-derived rubber crumb is considered safe for equine use and is the most widely used arena surface material in the UK. The key safety requirement is that all steel wire (from tyre belt reinforcement) must be completely removed before supply. Ask your supplier for a wire-free certificate confirming magnetic and non-ferrous separation has been carried out. Blue steel-belted truck tyre wire is non-ferrous and requires non-magnetic separation specifically — confirm this is covered. There is no credible evidence of harm from correctly processed tyre crumb in UK equine arenas.
How often should I harrow my rubber arena surface?
For an actively used arena (daily schooling or training), harrowing after every session maintains the surface properly. For lighter use (2–4 sessions per week), harrowing 3–4 times per week is sufficient. The goal is to break up compaction from hoof traffic and redistribute the rubber/fibre blend evenly. A purpose-built arena harrow produces the best result — avoid using agricultural disc harrows which can drag and displace too much surface material. After harrowing, the surface should look uniform in texture with no high or low spots.
What is the typical cost to install a rubber crumb arena surface in the UK in 2026?
For a standard 20m × 40m outdoor arena, rubber crumb/fibre surface supply and installation typically costs £8,000–£15,000 in 2026, depending on material specification (waxed vs non-waxed, fibre blend ratio), site access, and regional labour rates. This is for the surface material only — the base construction (drainage, Type 1, membrane) is usually a separate contract costing £15,000–£35,000 for a full professional installation. A complete arena (base + surface) for a 20 × 40m menage typically costs £25,000–£50,000 from a specialist arena contractor. Rubberco supplies rubber crumb and stable matting components direct — contact us for trade pricing on supply-only orders.
