Acoustic Underlay UK: Rubber-Based Sound Insulation for Every Floor Type

Choosing the right acoustic underlay is one of the most important decisions in any UK flooring project involving separating floors between dwellings, commercial spaces, or mixed-use buildings. The underlay is often invisible once installed, but its impact on day-to-day living quality — both for occupants above and below — is enormous.

This guide cuts through the marketing noise to give you practical, technically accurate information about acoustic underlay for UK applications — focusing on rubber-based products that consistently outperform foam and felt alternatives in both short-term impact sound reduction and long-term performance retention.

What Is Acoustic Underlay?

Acoustic underlay is a resilient layer installed between the structural floor (concrete slab or timber joists) and the finished floor covering (hardwood, engineered wood, laminate, LVT, or tile). Its primary function is to reduce impact sound transmission — the noise generated when the floor surface is struck by footsteps, furniture movement, or dropped objects.

How Acoustic Underlay Works

When a foot strikes a floor, the impact energy must travel somewhere. Without acoustic underlay, most of this energy transmits directly into the structural floor, which then radiates sound to the space below. Acoustic underlay interrupts this transmission by:

• Absorbing the initial impact energy through elastic deformation
• Decoupling the finished floor from the structural floor, reducing vibration transfer
• Dampening resonance in the floor-ceiling assembly through material viscosity

Why Rubber Outperforms Foam Acoustic Underlay

Foam acoustic underlay (polyurethane or polyethylene) degrades over time — the cell structure compresses permanently under sustained load, reducing resilience and acoustic performance. Rubber, by contrast, maintains its elastic properties for decades under normal conditions. In testing conducted by major acoustic research laboratories, rubber acoustic underlay retains near-original ΔLw performance after 10+ years of simulated use, while foam products show significant performance degradation within 3–5 years.

Technical Performance of Rubber Acoustic Underlay

Key Performance Metric: ΔLw

The standard metric for acoustic underlay performance is Delta Lw (ΔLw) — the weighted reduction in impact sound level provided by the underlay, measured in decibels (dB). This is measured according to BS EN ISO 140-8 and rated according to BS EN ISO 717-2.

Higher ΔLw = better acoustic performance. For residential applications in the UK requiring Part E compliance, a ΔLw of at least 18–22 dB from the underlay alone is typically needed when combined with the appropriate floor covering over a suitable structural floor.

Acoustic Underlay Performance Comparison

Underlay Type	Typical ΔLw	Thickness	Long-term Performance
Standard foam (PE/PU)	8–14 dB	2–5mm	Poor (degrades with compression)
Foam/foil composite	10–16 dB	3–5mm	Moderate
Felt acoustic underlay	12–18 dB	5–8mm	Moderate (moisture sensitivity)
Rubber acoustic underlay	18–28 dB	3–10mm	Excellent (maintains performance)
High-density rubber composite	24–32 dB	5–10mm	Excellent

UK Building Regulations and Acoustic Underlay

Approved Document E (England)

Building Regulations Approved Document E sets minimum acoustic performance requirements for new residential developments and material changes of use in England. For separating floors between flats:

• Impact sound insulation: L'nT,w ≤ 62 dB (lower is better)
• Airborne sound insulation: Dn,T,w ≥ 43 dB (higher is better)

Acoustic underlay is a key component in achieving these targets, particularly for concrete separating floors where impact sound control is the primary challenge. The Robust Details scheme (RD-FC-1 through RD-FC-11) provides pre-approved floor/ceiling constructions for England — specifying the precise underlay and floor covering combinations that achieve compliance without requiring pre-completion acoustic testing.

Part E Scotland and Wales

Scotland's Technical Handbooks and Wales Approved Documents contain broadly similar requirements but with some specification differences. Always check the relevant national document for your project jurisdiction.

Types of Rubber Acoustic Underlay

Recycled Crumb Rubber Underlay

Manufactured from recycled tyre rubber (SBR crumb), these underlays offer excellent acoustic performance at competitive prices. The crumb rubber is bonded into a continuous sheet or mat, providing consistent density and resilience. Available in rolls or tiles, crumb rubber underlay is suitable for most domestic acoustic applications and many commercial projects.

Virgin Rubber Acoustic Underlay

Higher-specification products use virgin natural rubber or synthetic rubber compounds for superior dimensional stability, chemical resistance, and guaranteed performance consistency. Typically specified for commercial projects where acoustic certification documentation is required, or for high-performance residential applications.

Rubber/Cork Composite Underlay

Combining rubber's impact absorption with cork's natural resonance-damping properties, rubber-cork composite underlays perform exceptionally well for mid-frequency impact noise — including the irritating "clicky" footfall noise common with hard floor coverings. Particularly effective beneath wooden or laminate floors in conversion flats.

Rubber/Foam Hybrid Underlay

Thin high-density rubber bonded to a closed-cell foam layer combines impact absorption (from rubber) with decoupling (from foam) in a product thin enough (typically 5–8mm) for use where floor height is constrained. A practical compromise when maximum acoustic performance must be achieved in minimal height.

Choosing Acoustic Underlay for Your Specific Floor Type

Under Engineered Hardwood and Solid Wood

Wood floors require acoustic underlay that provides good impact sound reduction without compromising the stability of the board. High-density rubber or rubber-cork composite underlays at 3–5mm are ideal — substantial enough for acoustic performance but thin enough to maintain floor stability. Ensure the underlay is compatible with the specific wood floor product's laying recommendations.

Under Laminate Flooring

Laminate floors transmit footfall noise effectively — the relatively rigid panels create a "drum effect" without appropriate underlay. A 5mm rubber acoustic underlay significantly reduces both the transmitted sound and the hollow, plastic-sounding footfall that cheap foam underlay fails to eliminate.

Under LVT and Click-Vinyl

Many LVT products come with integral foam or cork backing and state they do not require additional underlay. For acoustic applications — particularly in flats — this is rarely sufficient. An additional 3–5mm rubber acoustic underlay beneath LVT (or LVT specified with rubber backing rather than foam) provides meaningful impact sound improvement.

Under Tile and Stone

Ceramic, porcelain, and natural stone tiles are typically bonded directly to substrate — traditional underlay is not applicable. For acoustic tile installations, specialist acoustic decoupling membranes (often rubber-based) are installed between the substrate and the tile adhesive bed.

Installation Best Practices

Substrate Preparation

The substrate must be flat (max 3mm in 2m), structurally sound, and dry. Clean all dust, debris, and contaminants before laying acoustic underlay. On concrete ground floors, always install a damp proof membrane (DPM) beneath the acoustic underlay unless the product incorporates an integral moisture barrier.

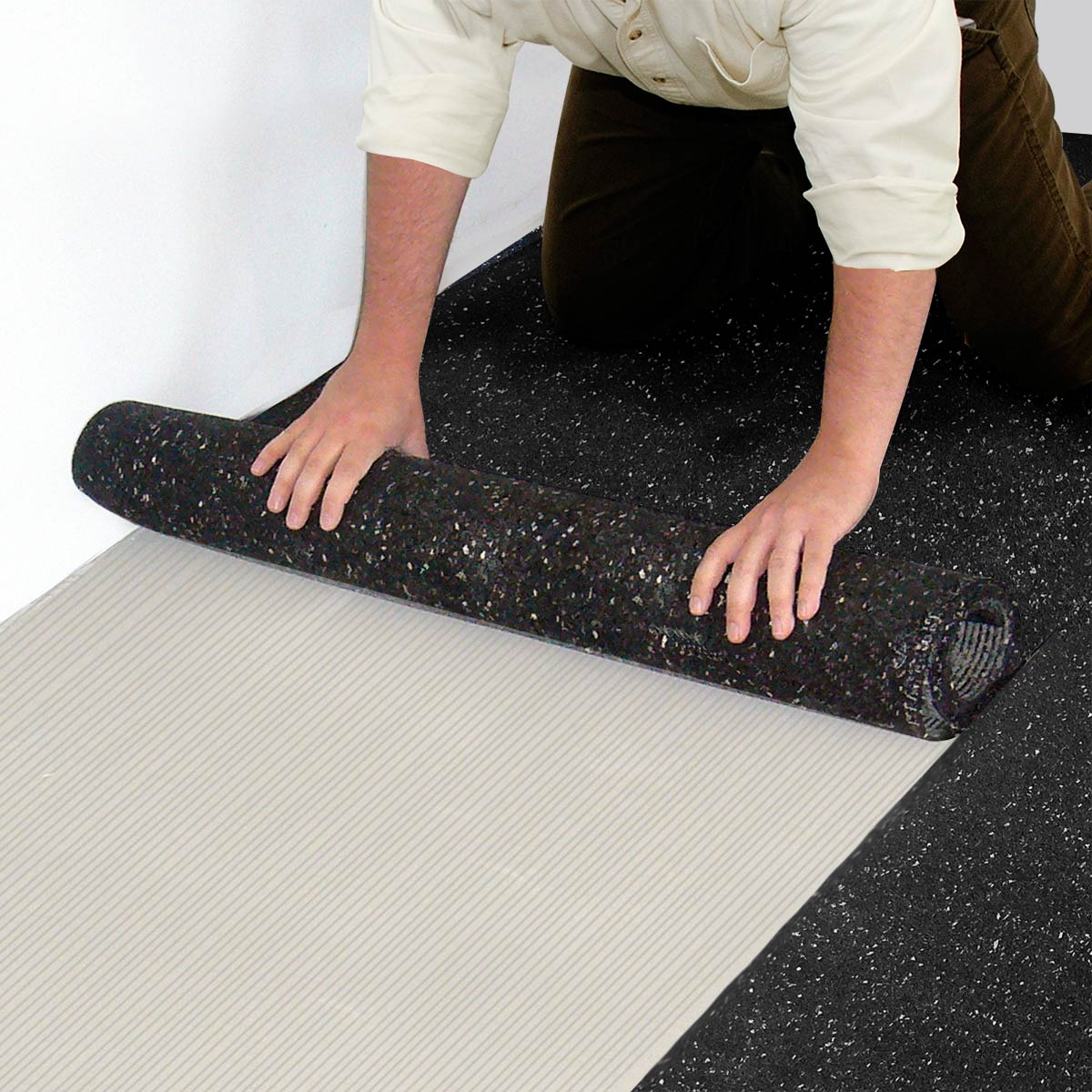

Laying Acoustic Underlay

Roll or place acoustic underlay foam-side down (if applicable) or as directed by the manufacturer. Butt edges together without overlapping — overlapping creates ridges that affect finished floor flatness. Tape all joins with the manufacturer-approved tape to prevent underlay separation during floor laying.

Perimeter Treatment

For maximum acoustic performance, the acoustic underlay should be turned up at the perimeter walls to create a continuous acoustic break between the floor and wall structure. This prevents flanking transmission — sound bypassing the floor via the wall structure — which is a common cause of acoustic performance falling short of laboratory predictions in real-world installations.

Where to Buy Acoustic Underlay in the UK

Rubberco supplies a comprehensive range of rubber acoustic underlay for UK projects — from basic domestic acoustic improvement to high-performance commercial and Part E-compliant systems. All products include full technical data and performance certifications. Free UK mainland delivery is available on qualifying orders.

Visit our acoustic flooring range or contact Rubberco for specification advice tailored to your project.

Frequently Asked Questions

What ΔLw do I need for Part E compliance in a UK flat?

There is no single ΔLw figure that guarantees Part E compliance — the required underlay performance depends on the structural floor construction, the finished floor covering, and ceiling construction below. As a practical starting point, aim for a rubber acoustic underlay with ΔLw ≥ 20 dB as a component of a compliant floor-ceiling system. Always consult an acoustic engineer for projects requiring pre-completion testing.

Is 3mm rubber acoustic underlay enough?

A 3mm high-density rubber underlay can provide ΔLw of 18–22 dB — adequate for many domestic applications where the requirement is to improve acoustic conditions rather than meet a specific regulatory target. For new residential developments where Part E compliance is required, a thicker or higher-performance product is typically needed as part of a specified floor system.

Can acoustic rubber underlay be used with underfloor heating?

Yes, but only products specifically rated as UFH-compatible. The underlay must have sufficient thermal conductivity to allow heat to pass through to the finished floor, while maintaining its acoustic properties. Look for products with a thermal resistance (R-value or tog rating) appropriate for UFH use — typically tog ≤ 1.0 for water-based UFH systems.

How thick will my floor be with acoustic underlay?

A 5mm rubber acoustic underlay adds 5mm to the total floor build-up — this must be accounted for in door clearances, transition strips, and connections to adjacent floor areas. For significant height differences between rooms, reducer strips are available.

Does acoustic underlay help with airborne sound?

Acoustic underlay's primary function is impact sound reduction. Its contribution to airborne sound insulation is modest — typically 1–4 dB improvement. For meaningful airborne sound control between floors, the overall floor-ceiling construction (particularly the ceiling below) is the critical variable, not the underlay alone.
