Acoustic rubber flooring encompasses a wide range of products designed to reduce both impact noise (transmitted through the floor structure) and airborne noise (transmitted through the air). Understanding the differences between these product types, their respective performance claims, and how to correctly specify them for different applications is essential to achieving the noise reduction you're paying for.

This guide focuses specifically on rubber-based acoustic products — underlays, acoustic tiles, and sheet materials — covering both technical performance and practical specification guidance for UK applications.

Acoustic Rubber Underlay

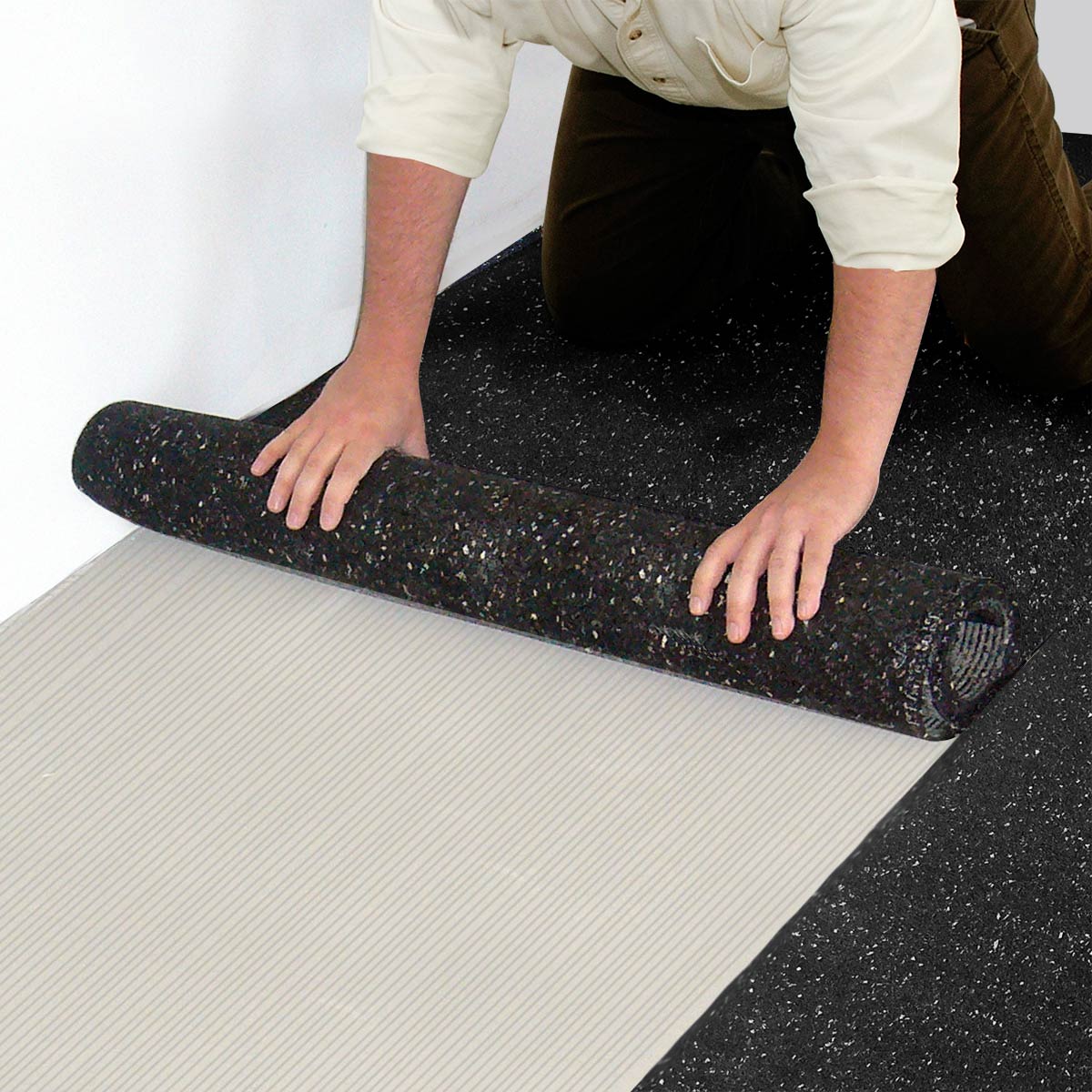

Acoustic underlay is the most widely used rubber acoustic product in the UK residential market. It sits beneath the floor finish and provides resilience that decouples the floor surface from the structural slab or timber substrate.

How Acoustic Underlay Works

When a foot impacts the floor surface, the impact energy must travel down through the floor finish, through the acoustic underlay, into the structural floor, and then through the ceiling below before becoming noise in the room under. At each material interface, some energy is absorbed or reflected. The underlay introduces a deliberately compliant (low stiffness) layer that absorbs impact energy and reduces the efficiency of vibrational transmission.

Types of Acoustic Rubber Underlay

Recycled SBR Crumb Rubber Underlay

Made from recycled tyre rubber granules compressed and bonded into sheet form. Available in thicknesses from 3mm to 12mm. The most cost-effective acoustic rubber underlay option.

• Dynamic stiffness: 15–30 MN/m³ (depending on thickness and compression)
• ΔLw improvement: 15–22 dB
• Cost: £4–£9 per m²
• Best used under: wood/laminate flooring, ceramic tile, LVT

Virgin Rubber Foam Underlay

Closed-cell or open-cell rubber foam. Lower dynamic stiffness than solid crumb rubber of the same thickness, providing better acoustic performance at thinner profiles.

• Dynamic stiffness: 8–20 MN/m³
• ΔLw improvement: 18–28 dB
• Cost: £8–£18 per m²
• Best used under: high-performance acoustic floor systems, floating screed systems

Recycled Rubber + Fibre Composite

Rubber granules combined with textile fibres (often recycled carpet fibres). These composites combine rubber's dynamic isolation with fibre's sound absorption. Used in premium underlay products.

• Dynamic stiffness: 10–18 MN/m³
• ΔLw improvement: 20–27 dB
• Cost: £10–£20 per m²

Acoustic Rubber Floor Tiles

Some rubber floor tiles are specifically designed with acoustic performance as a primary function. These may incorporate a separate acoustic backing layer or use a specially formulated rubber compound to achieve both surface flooring and sound reduction in a single product.

Standard Rubber Tiles vs Acoustic Rubber Tiles

Property	Standard 10mm Rubber Tile	Acoustic 10mm Rubber Tile
Dynamic stiffness	~50–80 MN/m³	~15–30 MN/m³
ΔLw (impact noise)	~10–15 dB	~18–25 dB
Cost per m²	£10–£16	£20–£35
Durability	High	Good (depends on construction)

Acoustic Rubber Sheet for Floating Screeds

In commercial and residential construction, rubber sheet acoustic membranes are used beneath floating concrete screeds. The membrane decouples the screed from the structural concrete slab, creating a floating floor system with significant acoustic performance.

Specification for Floating Screed Acoustic Rubber

• Thickness: 5–25mm (thicker = lower dynamic stiffness = better acoustic performance, but also more floor height lost)
• Compression resistance: The rubber must support the screed load without compressing excessively — typically stated as compression under 0.2 N/mm² load (simulating a 20kg/m² screed)
• Dynamic stiffness: Target < 20 MN/m³ for good acoustic performance in residential applications

Acoustic Performance Claims — What to Look For

Many acoustic rubber products make claims that require careful interpretation:

• "Up to X dB reduction": Ask for the test standard used and the test configuration. A product tested on a 140mm concrete slab will perform differently from one tested on 18mm timber.
• ΔLw vs L'nT,w: ΔLw is the laboratory improvement; L'nT,w is the in-field installed performance. In-field is always worse due to flanking transmission (sound going around the floor via walls). Design with in-field values if you're working to Building Regulations Part E.
• Product certification: Look for acoustic test data from UKAS-accredited UK acoustic laboratories. European test data (CE) is generally accepted but confirm with your building control officer for Part E compliance.

Specifying for Home Gyms Over Living Spaces

One of the most common questions we receive at rubberco.co.uk is about home gym noise reduction. A home gym on the first floor above a living room or bedroom generates significant impact noise from exercise equipment, dropped weights, and jumping movements.

Recommended approach:

1. Install acoustic rubber underlay (6–10mm, dynamic stiffness <20 MN/m³) across the entire gym floor area
2. Lay rubber gym tiles (15–20mm) on top, loose-lay (floating)
3. Ensure the perimeter has isolation strips — no direct floor-to-wall contact
4. Put specific anti-vibration pads beneath treadmills and rowing machines
5. Avoid dead-lifting or weight-dropping without proper deadlift platforms with 50mm+ rubber

This system typically achieves ΔLw 20–28 dB in residential conditions — a substantial reduction in audible impact noise for occupants below.

Explore our acoustic rubber flooring range at rubberco.co.uk, with full acoustic performance data for each product. Need a specification recommendation? Contact our technical team.

Shop Related Rubber Flooring & Matting

• Acoustic Flooring
• Anti-Fatigue Mats
• Rubber Matting Range

Frequently Asked Questions

What is the best acoustic underlay for reducing impact noise?

Rubber acoustic underlay typically offers excellent impact sound reduction (delta IIC), often achieving 20–25dB reduction. High-density rubber performs best for footfall and impact noise from floors above.

Do I need acoustic flooring in a flat or apartment?

Building Regulations Part E requires minimum sound insulation between dwellings in new builds and conversions. Acoustic rubber underlay and flooring help achieve the required 45dB airborne and 62dB impact sound performance.

What is the difference between impact noise and airborne noise?

Impact noise is caused by physical contact (footsteps, dropped objects). Airborne noise travels through the air (speech, music). Acoustic rubber flooring primarily addresses impact noise, while mass and decoupling reduce airborne noise.

How thick should acoustic underlay be?

For effective impact noise reduction, acoustic underlay should be at least 5mm thick. High-performance options range from 8–15mm. Thicker underlay generally provides better attenuation but check compatibility with your flooring.

Can rubber flooring reduce noise from a gym above?

Yes – thick rubber gym flooring (15–20mm+) significantly reduces impact noise transmission from gym equipment. Combine with acoustic underlay for maximum sound reduction in multi-storey buildings.
