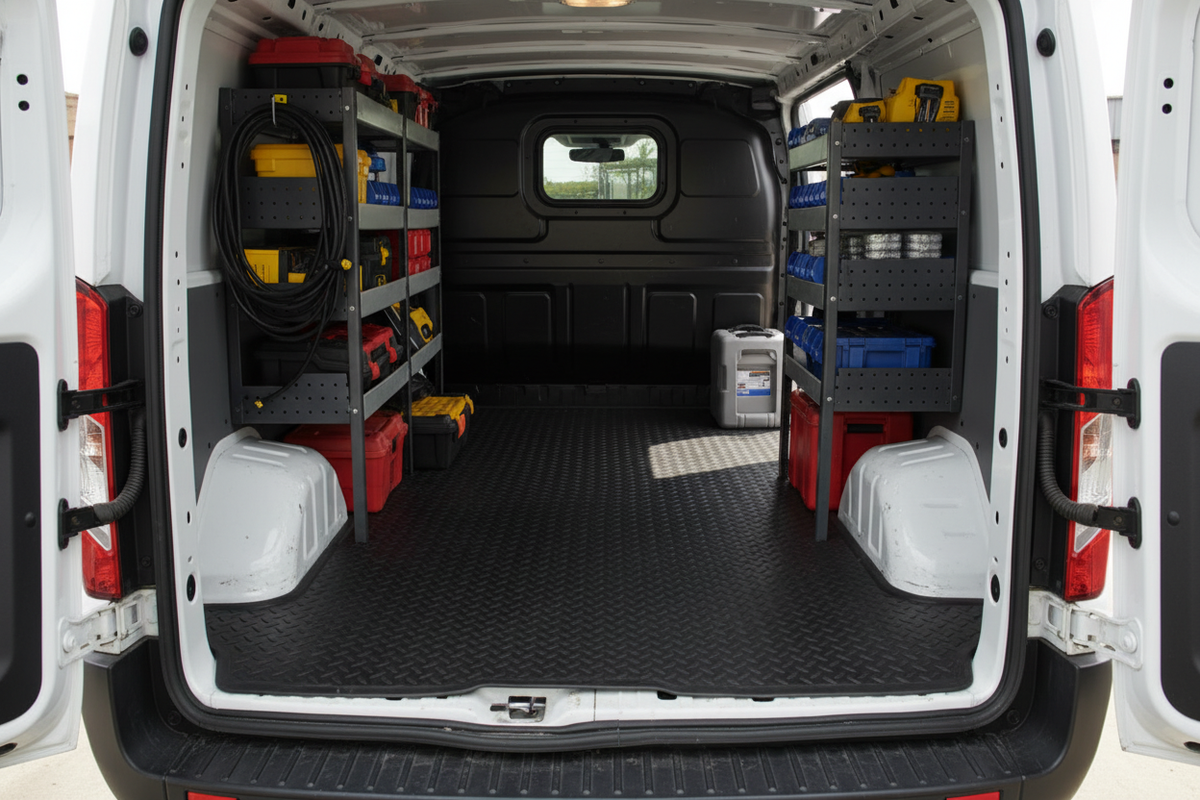

Rubber Flooring for Vans & Vehicles UK: Complete Guide to Van Matting 2026
Last updated: April 2026
Whether you're kitting out a work van, building a campervan conversion or protecting your vehicle's cargo area, the right rubber flooring makes a dramatic difference to durability, safety and resale value. This guide covers every type of van and vehicle rubber flooring available in the UK in 2026 — what to buy, how thick to go, and how to install it properly.
Why Rubber is the Best Choice for Van Flooring
Vans and commercial vehicles face flooring demands that household materials simply cannot handle:
- Heavy cargo loads — pallets, tools, equipment, livestock all exert high point loads
- Repeated loading and unloading — dragging items across the floor causes rapid abrasion
- Moisture and contamination — rain, mud, oil and chemicals regularly enter the cargo area
- Temperature extremes — van interiors range from -15°C to +60°C seasonally
- Slip risk for operators — stepping in and out of a loaded van on a bare metal floor is a significant injury risk
Rubber van flooring addresses all of these. It's impact-resistant, waterproof, UV-stable, non-slip, easy to clean and long-lasting. A quality rubber floor liner will outlast most vans — many professional van fitters use the same rubber matting for 10+ years.
Types of Van and Vehicle Rubber Flooring
1. Rubber Matting Rolls (Cut to Size)
The most popular and cost-effective solution. Rubber matting rolls in 1m or 1.2m widths can be cut to the exact length of any van floor. Studded or ribbed surface patterns provide anti-slip grip. Available in 3mm–12mm thickness. Suitable for most commercial vans, trailers and horse boxes.
2. Heavy-Duty Van Matting
Specifically marketed for van use, these are typically 6–10mm SBR or EPDM rubber with a raised diamond or stud pattern. Often sold in standard van widths (1.2m to match Transit/Sprinter/Transporter floor widths). Some have a smooth reverse face to prevent sliding on the van floor.
3. Interlocking Rubber Tiles
For campervans and converted vehicles where a clean, finished look is needed, interlocking rubber tiles provide a modular floor covering that's easy to install and replace in sections. Available in 500mm × 500mm and 1000mm × 1000mm formats. 10mm or 15mm thickness recommended for van use.
4. Ribbed Rubber Mats
Ribbed profile matting is particularly popular in horse boxes and livestock trailers where deep grooves provide traction for animals and allow urine and water to drain away. The ribbed profile also provides cushioning underfoot for animals standing during transit.
5. SBR Recycled Rubber Sheet
Economical, durable and widely used in commercial vans. SBR rubber sheet in 4–6mm thickness is a budget-friendly floor protection option — it won't outlast EPDM but provides excellent short-to-medium-term protection at a lower upfront cost.
Choosing the Right Thickness for Van Flooring
| Thickness | Best For | Typical Load Rating |
|---|---|---|
| 3–4mm | Light protection, car boots, small vans | Light pedestrian only |
| 6mm | Standard commercial vans (Transit, Sprinter), tool storage | Up to 500kg/m² |
| 8–10mm | Heavy-duty vans, racking, pallet loaders | Up to 1,000kg/m² |
| 12–16mm | Trailers, horse boxes, livestock transport | Up to 2,000kg/m² |
| 20mm+ | Heavy agricultural trailers, forklift decks | Vehicle rated |
Rule of thumb: For a standard transit-style van used by a plumber, electrician or tradesperson, 6mm rubber matting provides excellent protection and is the most common choice. For horse boxes and livestock trailers, go 12mm minimum.
Van Flooring by Vehicle Type
Ford Transit / Mercedes Sprinter / VW Transporter
The most common work vans in the UK. Standard floor width is 1.2m–1.3m for the cargo area. A 1.2m-wide rubber matting roll cut to the van's exact length provides seamless coverage. Most tradespeople choose 6mm studded black SBR rubber for its balance of durability and cost.
Horse Boxes and Livestock Trailers
Animals require specialist rubber flooring — 12mm–22mm studded or ribbed SBR rubber is standard in the equestrian industry. The deep grooves provide hoof grip during cornering and acceleration, while the thickness cushions joints on long journeys. A horse box typically needs 8–12m² of flooring.
Campervan Conversions
Campervan builders typically want a more aesthetic finish than raw commercial matting. Interlocking rubber tiles in grey or brown provide a modern industrial look while remaining easy to clean after muddy outdoor adventures. 10mm tiles are a popular choice for campervans used for overlanding and adventure travel.
Refrigerated Vans and Food Delivery
Refrigerated vans need rubber flooring that remains flexible at low temperatures. EPDM rubber is preferred here — it stays pliable down to -40°C where SBR can stiffen. Food-grade surfaces may require smooth (not studded) profiles to comply with hygiene requirements — check with your fleet operator.
Flatbed Trailers and Ramps
Flatbed trailer surfaces require heavy-duty vehicle-rated matting, 15mm–22mm, fixed with countersunk bolts or aluminium edging profiles. The matting must resist the loading ramp impact and repeated forklift tine contact. Ribbed or diamond-plate rubber profiles are preferred for their directional grip.
How to Fit Rubber Van Flooring
- Measure accurately — measure the van cargo floor length, width and note any wheel arch intrusions. Add 50mm to each dimension to allow for trimming
- Clean the van floor — remove all grease, oil and rust. A clean, dry surface ensures better adhesion if you're using adhesive and improves the flat lay of non-glued matting
- Cut to size — use a sharp utility knife against a steel straight edge. Score and snap for clean straight cuts. For curves around wheel arches, use a jigsaw or tin snips
- Lay dry first — always dry-fit before any adhesive. Confirm the mat sits flat and covers all required areas
- Fix the matting — for commercial vans, heavy rubber (6mm+) typically stays in place without adhesive. For horse boxes and trailers, fix with stainless steel countersunk screws through the rubber into the floor frame at 300mm centres around the perimeter
- Edge treatment — for a professional finish, fit aluminium edge trim around the perimeter. This prevents the rubber edge from lifting during loading operations
Cleaning Van Rubber Flooring
Van rubber flooring is easy to maintain and will last much longer with basic care:
- Daily/after each use — sweep out loose debris; mop up liquid spills before they dry
- Weekly — hosepipe rinse with a stiff brush; mild detergent for oily contamination
- Quarterly — lift the mat (if not fixed) and clean beneath; check for mould growth in areas prone to moisture trapping
- Avoid — petrol, solvents, undiluted bleach; these attack the rubber compound
FAQ: Rubber Flooring for Vans
What is the best rubber for van flooring?
SBR (Styrene-Butadiene Rubber) is the most popular choice for commercial van flooring due to its excellent durability-to-cost ratio. For vehicles that operate in extreme cold (refrigerated vans, Highland Scotland working vehicles), EPDM rubber is preferred for its superior low-temperature flexibility. For horse boxes and livestock trailers, heavy-duty SBR studded matting (12mm+) is the industry standard.
How do I measure van flooring for a Ford Transit?
For a Ford Transit MWB cargo van: standard internal width is approximately 1,400mm between wheel arches (1,220mm at the narrowest point between wheel arch housings), and length varies by wheelbase — MWB is approximately 2,600mm, LWB approximately 3,400mm. Measure your specific vehicle with a tape measure along the cargo floor centre line and across the widest point. Add 100mm to allow for trimming.
Can I use rubber matting in a horsebox?
Yes — rubber matting is the standard flooring choice for horse boxes and livestock trailers. Use a minimum of 12mm heavy-duty studded rubber. The studded profile provides hoof grip to prevent slipping during transit, and the thickness cushions joints on long journeys. Fix with stainless steel screws to prevent movement. Replace matting showing significant wear immediately — torn or folded rubber is a major injury risk to horses.
Does rubber van flooring smell?
New SBR rubber has a noticeable rubber odour that typically dissipates within 2–7 days in a well-ventilated environment. Leave the van doors open when not in use for the first week. EPDM rubber has significantly less odour. If the smell persists, wipe the matting with a diluted white vinegar solution (1:10) and allow to dry fully with the doors open.
How much does van rubber flooring cost?
Van rubber flooring typically costs £8–£25 per linear metre depending on width and thickness. A standard Transit MWB van floor (approximately 3m × 1.2m = 3.6m² coverage) costs £25–£90 in materials depending on the grade chosen. 6mm studded SBR rubber at 1.2m wide is approximately £12–£15/m running, so around £40–£50 for a typical Transit floor — excellent value considering the protection it provides.
Does van rubber flooring affect vehicle weight?
Rubber matting weighs approximately 5–7kg/m² for 6mm thickness, rising to 10–14kg/m² for 10mm matting. A Transit van floor covered with 6mm matting (approx 3.5m²) adds around 17–25kg — negligible compared to typical payload. Even for 12mm horse box matting covering 12m², the weight is approximately 120–168kg, which is accounted for in the trailer's tare weight specification.
Can rubber van flooring be glued down?
Yes, rubber matting can be glued to van floors using contact adhesive (solvent-based or water-based rubber contact cement). Clean and degrease the van floor thoroughly first. Apply adhesive to both surfaces, allow to become tacky, then press together. Note: gluing makes future replacement more difficult — for commercial vans, most operators prefer the loose-lay or screw-fix approach for easy replacement when the matting wears out.
