Rubber Cow Mats UK: The Complete Dairy & Beef Farming Guide 2026

Rubber cow mats are one of the highest-return investments available to UK dairy and beef farmers. The evidence is clear and well-documented by AHDB, veterinary researchers, and farm consultancies: cattle on rubber matting lie down longer, have lower lameness scores, and in dairy herds, produce measurably more milk. This guide covers everything you need to specify the right rubber cow mats for your farm.

Why UK Farmers Switch to Rubber Cow Mats

Traditional concrete cubicle and passage floors are hard on cows. Concrete conducts cold, causes hoof wear, and provides poor grip when wet — all conditions that stress cattle, discourage lying, and contribute to lameness. Rubber matting addresses each of these problems simultaneously.

The business case is straightforward for dairy farmers:

• Higher milk yield: Research consistently shows 0.5–1.5 litres/cow/day more milk when cows transition from concrete to rubber
• Reduced lameness: Lower culling rates, lower vet bills, longer productive herd life
• Faster lying transitions: Cows on rubber mats lie down and rise more quickly, spending less energy on postural changes
• Better feed intake: Comfortable standing at the feed barrier improves DMI and body condition
• Bedding savings: Less sawdust/straw needed when the primary cushioning layer is the mat

For beef farmers, the benefits are similar: better daily liveweight gains, reduced finishing time, and lower treatment costs for hoof issues.

Types of Rubber Matting for Cattle Housing

Cubicle Lying Mats (17mm–22mm)

The most common and highest-impact application. Solid SBR rubber mat, either loose-laid or fixed into the cubicle bed. Standard size for UK Holstein-Friesian dairy cows: 1.8m × 1.2m per cubicle. Smaller sizes for heifers and beef breeds.

Specification requirements:

• Thickness: 17mm minimum for adult dairy cows; 22mm for heavy beef breeds
• Density: High-density SBR compound — avoid low-quality mats that compress and "bottom out" within 2–3 years
• Surface texture: Smooth or lightly ribbed — cows prefer smooth surfaces for lying; textured surfaces for passages
• Size: Cut to cubicle dimensions — standard or bespoke cuts available

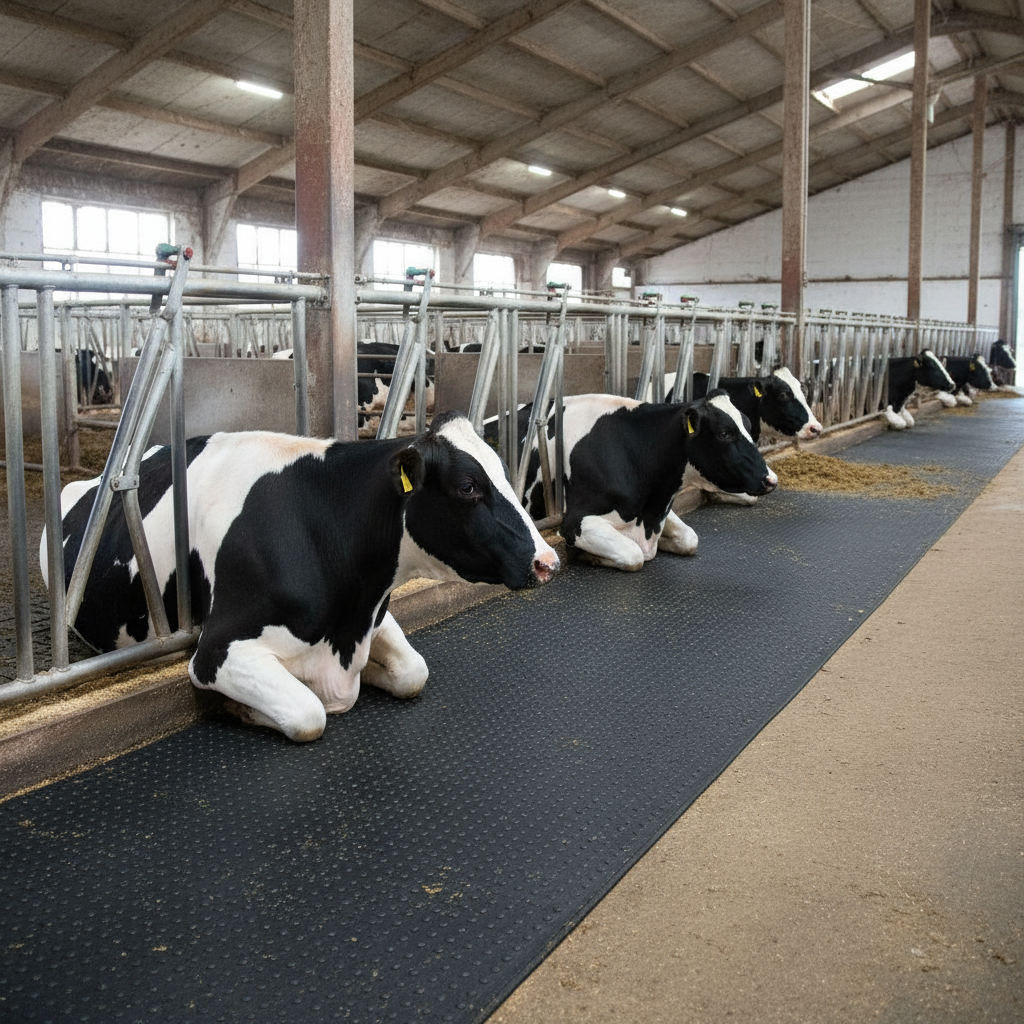

Feeding Passage & Standings Matting (Scraper Mats)

Ribbed, studded, or cleat-pattern heavy-duty SBR rubber rolls designed to provide grip for cows' hooves in wet slurry conditions. Key specifications:

• Width: typically 1.2m or 1.5m rolls to fit passage width
• Thickness: 17–22mm heavy duty
• Pattern: Raised studs (hoof-friendly, non-abrasive), wide ribbing, or cleat pattern
• Roll lengths: 10m standard; cut to length available

Milking Parlour Matting

Milking parlours require rubber matting that combines grip with hygiene. Important considerations:

• Non-slip surface essential — cows must stand securely during milking
• Easy to clean — smooth or fine-ribbed surfaces without deep crevices where bacteria accumulate
• Chemical resistance — must withstand regular teat dip, disinfectants, and dairy cleaning agents
• Drainage channels or perforations recommended for wet-room parlour designs

Calving Box & Isolation Pen Matting

Calving boxes benefit from rubber matting to provide cushioning during calving and warmth for newborn calves. A thick, smooth surface mat is preferred. Mats in these areas should be removable for thorough disinfection between calvings.

UK Research: The Evidence for Rubber Cow Mats

Sizing Guide: How Much Rubber Matting Do You Need?

Calculating your requirement is straightforward:

Cubicle Beds

• Measure individual cubicle bed length × width
• Multiply by number of cubicles
• Standard UK Holstein cubicle: 1.8m × 1.2m = 2.16m² per cubicle
• Example: 100-cow herd with 105 cubicles = 105 × 2.16m² = 226.8m² of matting

Feed Passage

• Measure passage length × passage width used by cows
• Typically 3m–3.5m wide passages; mat the full standing area
• Example: 30m passage × 2.5m cow standing area = 75m² of passage matting

Total Matting Budget

A 100-cow dairy unit with cubicles and a feed passage will typically require 300–400m² total. At current prices (approximately £8–14/m² depending on thickness and pattern), budget £2,400–£5,600 for a full installation — recoverable within one year through improved milk yield alone at current milk prices.

Installation Guide

Subfloor Preparation

Rubber cow mats must be laid on a clean, level concrete subfloor. Key preparation steps:

1. Power-wash concrete and allow to dry completely
2. Check for and repair any cracked or uneven concrete that would create pressure points under mats
3. Ensure adequate drainage gradients are maintained — rubber mats should not create pooling areas

Cubicle Mat Fixing

Loose-lay installation works well for heavy mats (17mm+) — their weight and size prevents movement. For lighter or shorter mats, fixing options include:

• Recessing the mat into a concrete rebate (most permanent solution)
• Bolting through pre-drilled holes to the concrete
• Adhesive bonding with suitable rubber-compatible adhesive

Passage Matting Installation

For feed passage and standings, roll matting is typically loose-laid. Heavy-duty mats 17mm+ are sufficiently stable with normal cattle traffic. Edge profiles or perimeter rails can be used to keep edges from lifting over time.

Maintenance and Longevity

• Daily: Scrape slurry from passage mats with automatic or manual scrapers — rubber withstands metal scraper contact
• Weekly: Power-wash cubicle mats when cows are out (parlour or grazing)
• Monthly: Lift and inspect mats — check for moisture underneath (a wet subfloor causes ammonia build-up and hoof disease)
• Annual: Full inspection of mat condition, check for wear, cracking or delamination

Properly maintained 17–22mm SBR cow mats should last 10–15 years. Avoid harsh chemical sanitisers (bleach, strong acids) as these will degrade rubber compounds. Use pH-neutral or rubber-safe disinfectants.

Frequently Asked Questions

What thickness rubber matting do I need for cow cubicles?

For dairy cow cubicles, 17mm to 22mm thick SBR rubber matting is the recommended standard. Research published by AHDB shows that cows on rubber matting show significantly increased lying times, reduced lameness, and improved milk yield. Thinner mats (under 15mm) compress too readily and lose their cushioning benefit over time.

Does rubber matting improve milk yield in dairy cows?

Yes — multiple UK and European studies confirm rubber matting improves milk yield. A University of Bristol study found dairy cows on rubber cubicle matting produced an average of 1.2 litres more milk per day compared to cows on concrete. The mechanism is reduced stress and fatigue from more comfortable lying.

Can rubber cow mats be used in feeding passages?

Yes — rubber matting in feeding passages is highly beneficial. Heavy-duty 17–22mm SBR rubber roll matting reduces slip risk when cows are bunching at the feed barrier, particularly in wet conditions. It also reduces hoof wear and encourages longer standing at the feed barrier, improving dry matter intake.

How long do rubber cow mats last?

Quality 17–22mm SBR rubber cow mats typically last 10–15 years with normal dairy use. Lifespan depends on bedding practices, scraping frequency, and rubber compound quality. Heavy beef cattle may cause faster wear than dairy cows due to higher body weight.

What is the difference between cubicle mats and scraper mats?

Cubicle mats are laid in the cow lying area — thick (17–22mm) solid rubber providing cushioning and warmth. Scraper mats (cow passage mats) are used in feed passages — they typically feature raised studs or ribbing to provide grip for cows' hooves in wet conditions.
