BS EN 61111 Electrical Insulating Rubber Matting UK: Switchgear, Substation & HV/LV Safety Complete Guide
When working on or near high-voltage electrical equipment, the difference between life and death can be the mat under your feet. BS EN 61111 electrical insulating rubber matting is the UK and European standard governing the design, testing, and classification of rubber matting used to protect workers from electric shock in switchgear rooms, substations, and LV/MV/HV electrical installations.
This guide covers the full BS EN 61111 standard, Class 0 to Class IV voltage ratings, UK regulatory requirements, compound selection, and how to specify the right insulating matting for every type of electrical installation — from 240V domestic switchboards to 33kV distribution substations.
Note: BS EN 61111 insulating matting is a fundamentally different product from anti-static ESD matting. ESD matting dissipates static electricity (millions of ohms resistance) whereas electrical insulating matting provides very high resistance (hundreds of megohms) to prevent electrocution. The two products must not be confused or interchanged.
UK Regulatory Framework for Electrical Safety Matting
Several overlapping statutory instruments and standards govern the use of insulating matting in UK electrical installations:
| Regulation / Standard | Key Requirement | Matting Relevance |
|---|---|---|
| Electricity at Work Regulations 1989 (EaWR) | Regulation 13: precautions against electric shock from live conductors where safe isolation is not practicable | Insulating matting classified as a precautionary control measure under Reg 13 |
| Health & Safety at Work Act 1974 (HSWA) | Section 2: employers must provide safe plant, systems of work, and equipment | Appropriate matting is part of the safe system of work for electrical switchgear |
| Management of Health & Safety at Work Regs 1999 | Regulation 3: suitable and sufficient risk assessment | Electrical risk assessment must identify floor protection requirements near live panels |
| BS EN 61111:2009+A1:2017 | Specification for electrical insulating matting for use in electrical installations | Primary product standard — defines classes, voltage limits, tests, marking |
| IEC 60479-1:2005 | Effects of current on human beings and livestock | Scientific basis for shock current thresholds that inform BS EN 61111 class boundaries |
| BS 7671:2018+A2:2022 (18th Edition IET Wiring Regs) | Chapter 41: Protection against electric shock | Section 411.3.3 references insulating floors and walls as a protective measure |
|
HSE GS38: Electrical test equipment HSE HSG85: Electricity at Work |
Guidance on safe working on or near live electrical equipment | Recommends insulating matting as part of PPE/protective measures suite |
|
DNO Technical Specifications (SP Energy Networks, Western Power, UK Power Networks, etc.) |
Distribution Network Operator–specific switchgear room requirements | Many DNO specs mandate Class II or Class III matting in primary and secondary substations |
The HSE's Electricity at Work: Safe Working Practices (HSG85) explicitly states that insulating matting should be used wherever there is a risk of contact with live parts when carrying out electrical work. This makes BS EN 61111 matting a practical compliance tool under the EaWR 1989 — one of the most strictly enforced pieces of UK health and safety legislation.
Understanding BS EN 61111: The Five Voltage Classes
BS EN 61111 defines five classes of electrical insulating matting based on the maximum voltage the mat must withstand during proof testing. Class determines the maximum working voltage at which the mat provides adequate protection:
| Class | Proof Test Voltage (AC) | Proof Test Voltage (DC) | Max Use Voltage (AC rms) | Max Use Voltage (DC) | Typical Application |
|---|---|---|---|---|---|
| Class 0 | 5 kV | 20 kV | 1,000 V | 1,500 V | LV switchboards, domestic distribution boards, 400V/240V systems, control panels |
| Class I | 10 kV | 40 kV | 7,500 V | 11,250 V | LV ring main units, motor control centres up to 7.5kV |
| Class II | 20 kV | 50 kV | 17,000 V | 25,500 V | 11kV secondary substations, 11kV ring main units, 11kV switchgear rooms — most common UK DNO secondary substation class |
| Class III | 30 kV | 60 kV | 26,500 V | 39,750 V | 33kV primary substations, 33kV switchgear |
| Class IV | 40 kV | 70 kV | 36,000 V | 54,000 V | High-voltage transmission equipment, grid substations — specialist specification |
Key rule: Always specify the class that matches or exceeds the system voltage. For UK 11kV secondary substations, Class II is the minimum. Never downgrade to Class 0 or Class I in 11kV switchgear rooms, even if the mat is primarily used as a standing area away from live busbars.
Colour Coding Under BS EN 61111
BS EN 61111 assigns specific colours to each class to prevent dangerous misidentification on site:
| Class | Standard Colour | Notes |
|---|---|---|
| Class 0 | Beige / Tan | Sometimes black — check marking for confirmation |
| Class I | Red | |
| Class II | White | Most common in UK secondary substations |
| Class III | Yellow | Primary substation use |
| Class IV | Orange | Grid/transmission installations |
Colour coding provides an instant visual check that the correct class is installed. DNO site inspection regimes routinely check for colour compliance. Mismatched matting — for example, beige Class 0 installed in an 11kV switchroom — is a serious non-compliance that can trigger enforcement action under the EaWR 1989.
BS EN 61111 Testing Requirements
The standard mandates factory testing and periodic re-testing throughout the mat's working life. Understanding these tests helps specify, purchase, and maintain compliant matting:
Factory Proof Testing
Every roll of BS EN 61111 matting must be proof tested at the voltage corresponding to its class (see table above) before leaving the factory. Testing involves:
- Applying the proof voltage across the full mat thickness (between an electrode on top and a conductive base plate beneath)
- Measuring the leakage current — must not exceed defined limits in the standard
- No puncture or breakdown of the rubber matrix permitted
Minimum Electrical Resistance
The standard requires minimum resistance values per unit area. For reference:
- Class 0: ≥ 0.5 MΩ/cm²
- Class II: ≥ 100 MΩ/cm²
- Class IV: ≥ 500 MΩ/cm²
These values are orders of magnitude higher than anti-static ESD matting (which typically runs 10⁶–10⁹ Ω). Installing ESD matting in a switchgear room believing it provides electrical insulation would be catastrophic — ESD mats are conductive by design relative to electrical safety mats.
Physical Tests
BS EN 61111 also specifies:
- Minimum thickness: 3mm for Class 0, 6mm for Class II, 8mm for Class III/IV
- Tensile strength: ≥ 8 MPa (ensures the mat won't tear under normal use and create exposed edges)
- Elongation at break: ≥ 300% (flexibility for installation around cable ducts)
- Hardness: Shore A 60 ± 10 (firm enough to provide stable footing)
- Ozone resistance: No cracking after exposure to 50 pphm ozone for 96 hours (relevant for switchgear environments which may contain trace ozone from switching operations)
Periodic Re-testing
BS EN 61111 does not mandate a fixed re-test interval — this is left to the user's risk assessment. However, the standard and HSE guidance recommend periodic electrical proof testing, particularly after:
- Any visible damage, cuts, or holes to the mat surface
- Exposure to oils, solvents, or aggressive chemicals
- After significant mechanical damage (heavy equipment rolling over the mat)
- Routine inspection — many organisations test annually or biannually
Some specialist electrical safety testing companies offer BS EN 61111 proof test services on-site or with the mat returned to a laboratory.
Rubber Compound Selection for Electrical Insulating Matting
The rubber compound used in BS EN 61111 matting must deliver both high dielectric strength and long-term stability in switchgear environments. Unlike general flooring, the compound selection is tightly constrained by the electrical requirements:
| Property | Required Performance | Why It Matters |
|---|---|---|
| Dielectric Strength | ≥ 20 kV/mm minimum (Class II) | Core insulation property — determines class rating |
| Volume Resistivity | > 10¹³ Ω·cm | Prevents current leakage through the mat body |
| Ozone Resistance | No cracking at 50 pphm | Switchgear rooms contain trace ozone; cracked rubber loses insulation integrity |
| Oil Resistance | Moderate (Nitrile preferred for oil-filled switchgear) | Oil contamination from old switchgear or transformer rooms |
| Temperature Range | -20°C to +90°C service | Outdoor substations and unheated equipment rooms |
| Carbon Black Content | Zero or minimal | Carbon black is conductive — must be excluded from compound formulation |
| Plasticiser Leaching | Negligible | Migrating plasticisers create conductive films on mat surface over time |
Why Carbon Black is Excluded
Standard industrial rubber matting — including most SBR, recycled rubber, and general EPDM products — uses carbon black as a reinforcing filler. Carbon black is electrically conductive. A mat with carbon black may appear to be rubber but will conduct electricity at high voltages. BS EN 61111 matting must use silica, clay, or other non-conductive fillers as reinforcement. This is why you cannot use standard floor matting in a switchgear room even if it appears visually identical.
Recommended Compounds for BS EN 61111 Matting
- EPDM (ethylene propylene diene monomer): Excellent ozone and UV resistance, wide temperature range, good dielectric properties. Most common compound for general substation use.
- Neoprene (polychloroprene): Better oil resistance than EPDM. Preferred in transformer rooms, oil-filled switchgear, or where hydraulic oil contamination risk exists.
- Natural Rubber (NR): Historically used for electrical insulating matting — very high dielectric strength. Now largely replaced by synthetic compounds with better ozone and ageing resistance.
- Nitrile (NBR): Best oil resistance but lower dielectric performance than EPDM at high voltages. Suitable for Class 0/I in oily environments but confirm test certification for higher classes.
Critical rule: Never purchase electrical insulating matting without a factory test certificate (type test and routine test) confirming compliance with BS EN 61111 for the specified class. A rubber mat without this certificate provides no guaranteed electrical protection, regardless of how it looks.
Zone-by-Zone Specification Guide
Different electrical installations require different classes and configurations of insulating matting:

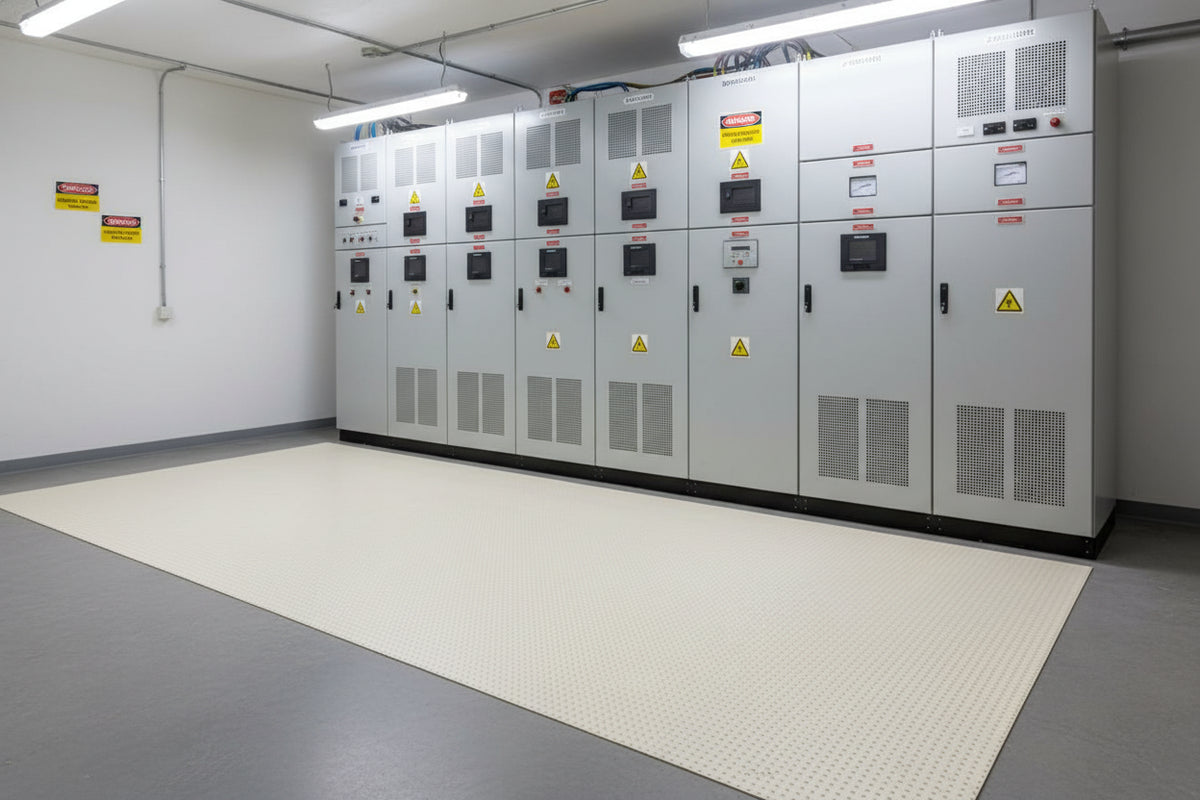

1. Secondary Substations (11kV / 415V)
- Class required: Class II (minimum) for all areas where 11kV equipment is accessible
- Colour: White
- Coverage: Full floor in front of 11kV switchgear; LV chamber may accept Class 0 if separated
- Typical thickness: 6–10mm
- DNO requirement: Check specific DNO specification (WPD, SP Energy, UKPN, ENW, Northern Powergrid all have individual substation standards)
- Fixings: Loose-laid only — do not fix with adhesive (adhesive can cause surface contamination affecting insulation)
2. Primary Substations (33kV)
- Class required: Class III
- Colour: Yellow
- Thickness: 8–12mm
- Coverage: Full perimeter in front of 33kV panels and busbars; interlock aisles between switchgear
3. LV Switchrooms and Motor Control Centres (MCC)
- Class required: Class 0 (for 400V/240V systems)
- Colour: Beige or black (check marking)
- Thickness: 3–6mm
- Typical locations: In front of main LV switchboards, MCCs, capacitor banks, variable speed drives, UPS systems
4. Generator Rooms and UPS Suites
- Class required: Class 0 minimum; Class I if generator output exceeds 1kV
- Special consideration: Generator rooms often have oil spill risk — specify Neoprene compound for oil resistance alongside electrical insulation
- Thickness: 6mm+ to handle mechanical traffic (hand trolleys, toolboxes)
5. Transformer Rooms
- Class required: Match the transformer primary voltage class
- Special consideration: Oil-immersed transformers create significant contamination risk — Neoprene or Nitrile compound preferred; check that oil resistance doesn't degrade dielectric performance for selected class
- Regular testing essential: Oil contamination can degrade insulation resistance over time — proof test annually as minimum
6. Railway and Traction Substations
- Class required: Class III or IV depending on traction voltage (25kV AC, 750V DC)
- Network Rail standard: NR/L2/ELEC/27400 governs electrical safety matting on Network Rail infrastructure
- Special consideration: High vibration environments — secure edges with non-conductive anchor strips
Installation Requirements for BS EN 61111 Matting
Correct installation is essential to maintain the mat's insulating properties:
- Clean and dry substrate: Ensure the floor is completely clean, dry, and free from conductive contaminants (metal filings, carbon dust, oil). Conductive debris between mat and floor can create ground faults under the mat.
- No adhesive fixing: Never glue insulating matting down. Adhesives may creep to the mat surface and create conductive paths. Loose-lay only.
- Joints and butt seams: Where multiple lengths are required, butt seams must overlap by a minimum of 150mm (some DNO specs require 200mm) to prevent current tracking through the gap at the joint.
- Edge protection: Use non-conductive edge ramps or trims to prevent lifting. Metal edge trims must not be used — they create a conductive path to earth at the mat perimeter.
- Coverage area: Cover the full floor area within arm's reach of live equipment or busbars. The IET and HSG85 guidance is conservative — when in doubt, extend coverage to the full aisle width in front of switchgear.
- Marking and labelling: BS EN 61111 requires permanent marking showing: standard reference, class, year of manufacture, manufacturer code. Inspect markings at installation — unmarked matting cannot be verified as compliant.
- Inspection on receipt: Inspect every roll before installation for cuts, holes, blistering, or damage. Return any damaged sections — never cut out a damaged area and splice in a patch.
Maintenance and Periodic Inspection
Visual Inspection (Monthly Minimum)
- Check for cuts, punctures, holes, or surface damage
- Look for chemical staining, oil contamination, or unusual discolouration
- Verify edges remain flush and no lifting has created trip hazards or exposed gaps
- Confirm overlap at seams is maintained ≥ 150mm
- Check that BS EN 61111 class markings remain legible
Electrical Proof Testing (Annual or After Damage)
- Test at the proof voltage for the mat's class (see Class table above)
- Measure leakage current — must remain within standard limits
- Retain test records as evidence of compliance for EaWR 1989
- Replace immediately if any test fails — do not continue using a mat that has failed proof testing
Cleaning
- Use: Mild soap solution, water, damp cloth wipe-down
- Avoid: Petroleum solvents, acetone, trichloroethylene — all degrade rubber and may introduce conductive residues
- Avoid: Steam cleaning at high pressure — can force conductive water into micro-pores
- After cleaning: Allow to dry completely before putting back into electrical service — wet rubber has significantly reduced insulation resistance
When to Replace
Replace BS EN 61111 matting immediately if any of the following apply:
- Any penetration of the mat surface (holes, cuts through full thickness)
- Failure of periodic proof test
- Significant ozone cracking on surface (indicates compound degradation)
- Oil saturation — contaminated mats cannot be returned to service even after cleaning
- Legible BS EN 61111 class markings worn away or removed (mat cannot be verified)
- Age: most manufacturers recommend replacement at 10 years maximum regardless of visual condition
Comparison: BS EN 61111 Electrical Insulating Matting vs Other Rubber Matting Types
| Property | BS EN 61111 Insulating Mat | ESD/Anti-Static Mat | Standard Industrial Matting | Anti-Fatigue Matting |
|---|---|---|---|---|
| Volume Resistivity | >10¹³ Ω·cm (very high) | 10⁶–10⁹ Ω (moderate) | 10³–10⁶ Ω (low — conductive) | Variable — not specified |
| Purpose | Prevent electrocution from live HV/LV equipment | Prevent ESD damage to electronics | Slip resistance, ergonomics, protection | Reduce fatigue from prolonged standing |
| Carbon Black | ❌ None — excluded | ✅ Controlled amount for conductivity | ✅ High content for colour/strength | Usually present |
| Colour Standard | Class-coded: beige/red/white/yellow/orange | Black or grey typically | Any colour | Any colour |
| Test Certificate | Mandatory (factory proof test) | Required (BS EN 61340-4-1) | None required | None required |
| Can substitute each other? | ❌ NEVER — interchanging is a safety-critical failure | ❌ | ||
| Application | Substations, switchrooms, MCC panels | Electronics manufacturing, PCB assembly | Warehouses, factories, kitchens | Production lines, service counters |
Frequently Asked Questions
1. What class of BS EN 61111 matting is required for a UK 11kV secondary substation?
Class II (white) is the minimum requirement for 11kV secondary substations in the UK. Class II is proof-tested to 20kV AC and rated for working voltages up to 17kV AC. Most DNO specifications — including Western Power Distribution, SP Energy Networks, and UK Power Networks — mandate Class II. Always check the specific DNO technical standard for your network area.
2. Can I use standard rubber floor matting in an electrical switchroom?
No. Standard rubber floor matting — SBR, recycled rubber, general EPDM — contains carbon black as a reinforcing filler. Carbon black is electrically conductive. Standard matting has volume resistivity of 10³–10⁶ Ω·cm; BS EN 61111 Class II requires greater than 10¹³ Ω·cm. Using standard matting in a switchroom is a serious breach of the Electricity at Work Regulations 1989.
3. How often should BS EN 61111 matting be electrically tested?
BS EN 61111 does not specify a mandatory re-test interval — frequency should be determined by your risk assessment. Most organisations proof-test annually or biannually, plus immediately after any visible damage or chemical contamination. Retain test records as evidence under the EaWR 1989.
4. What is the difference between ESD matting and BS EN 61111 electrical insulating matting?
These are opposite products. ESD matting has moderate resistance (10⁶–10⁹ Ω) to dissipate static charge. BS EN 61111 matting has extremely high resistance (greater than 10¹³ Ω·cm) to prevent current flow. ESD matting in a switchgear room provides zero electrical protection and could accelerate electrocution.
5. Do Network Rail and railway substations require different matting specifications?
Yes. Network Rail infrastructure is governed by NR/L2/ELEC/27400. Traction substations at 25kV AC or 750V DC third rail require Class III or Class IV matting. Always consult the specific Network Rail electrical safety standard and your engineering authority before specifying matting for railway infrastructure.
6. What thickness of BS EN 61111 matting should I specify?
Minimum thickness per class: Class 0 — 3mm; Class II — 6mm; Class III/IV — 8mm. Many specifiers choose 8–10mm for Class II to improve durability and ergonomics. Use bevelled non-conductive edge trims on all exposed edges to eliminate trip hazards.
7. Where can I find Rubberco's electrical rubber matting?
Browse our industrial floor mats and rubber matting rolls collections, or contact our team for specific Class 0, Class I, and Class II specifications for LV switchrooms, MCC panels, and 11kV secondary substations. Our anti-fatigue matting range is also suitable for non-electrical areas adjacent to switchgear rooms.
Summary: Key Specification Decisions
| Decision Point | Guidance |
|---|---|
| System voltage | Select class rating at or above system voltage — never below |
| Colour | Must match class: white (II), yellow (III), orange (IV), red (I), beige (0) |
| Compound | EPDM for general use; Neoprene/Nitrile for oil-contamination risk |
| Thickness | Minimum per standard; 8–10mm typical for Class II substation use |
| Test certificate | Factory proof test certificate mandatory — no certificate, no installation |
| Carbon black | Must be absent from compound — confirms via manufacturer's compound spec |
| Installation | Loose-laid, no adhesive, minimum 150mm overlap at seams, non-conductive edge trims |
| Inspection | Monthly visual; annual or post-damage proof test; replace immediately on failure |
| Cleaning | Mild soap only; no solvents; ensure fully dry before returning to service |
| Replacement | Any penetration, test failure, or significant ozone cracking — replace immediately |
For guidance on specifying the correct class of BS EN 61111 electrical insulating matting for your installation, contact the Rubberco team. Our specialist knowledge covers LV switchboards through to primary 33kV substations, ensuring you get the right class, compound, and thickness for your specific electrical safety requirements.
